Inverting and non inverting amplifiers with the LM741 opamp
The LM741 operational amplifier (op-amp) is a general-purpose, high-gain voltage amplifier widely used in analog circuit applications. Introduced as part of the µA741 series, the LM741 remains popular due to its internal frequency compensation, ease of use, and reliability.It is commonly used in amplification circuits, signal processing, active filters, and waveform generators. The LM741 op-amp supports both single-supply and dual-supply operations, making it highly adaptable for various electronic applications.
What is LM741 Op-Amp?
The LM741 is a monolithic operational amplifier designed for low-power, general-purpose applications. It is widely used in signal processing, amplification, and filtering circuits due to its low offset voltage and stable gain. The LM741 features built-in short-circuit protection, making it robust against accidental shorts.
Key Features of LM741 Op-Amp
Here are the important electrical characteristics and specifications of the LM741:
- Wide supply voltage range: ±5V to ±18V
- Input offset voltage: Typically 2mV
- Slew rate: 0.5V/µs – limits high-frequency applications
- Gain-bandwidth product: ~1 MHz
- CMRR (Common-mode rejection ratio): 70dB to 90dB
- Short-circuit protection: Enhances circuit safety
- Low input bias current: Reduces signal distortion
- Maximum output swing: ±14V with ±15V supply
- Internally compensated: No need for external compensation components
These features make the LM741 ideal for low-frequency analog applications, including sensor signal conditioning, DC gain stages, and simple analog filters.
LM741 Pinout
The LM741 operational amplifier (Op-Amp) is a widely used single op-amp with an 8-pin configuration. Below is the pinout description:
| Pin Number | Function | Description |
|---|---|---|
| 1 | OFFSET NULL | Used for offset voltage adjustment to minimize input offset errors. Typically connected to a potentiometer. |
| 2 | IN (-) | Inverting input of the operational amplifier. The signal applied here is inverted at the output. |
| 3 | IN (+) | Non-inverting input of the operational amplifier. The signal applied here maintains its phase at the output. |
| 4 | VEE (Negative Power) | Negative power supply (often connected to ground in a single-supply configuration or a negative voltage in dual-supply). |
| 5 | OFFSET NULL | Another offset adjustment pin, often used in conjunction with Pin 1. |
| 6 | OUTPUT | The output of the operational amplifier, providing the amplified signal. |
| 7 | VCC (Positive Power) | Positive power supply, providing the required voltage for the operational amplifier to function. |
| 8 | NC (Not Connected) | No internal connection; left unconnected in most applications. |
How Does the LM741 Op-Amp Work?
The LM741 op-amp amplifies the voltage difference between its input terminals. With high gain and negative feedback, it provides stable output for use as an amplifier, buffer, comparator, or filter in analog circuits.
LM741 Working Principle
The working principle of the LM741 op-amp is based on its operation as a differential amplifier, which amplifies the voltage difference between the non-inverting (+) and inverting (−) terminals. This output behavior is governed by the equation:
Vout = AOL × (V+ – V–)
Where:
- Vout is the output voltage
- AOL is the open-loop gain, typically around 200,000
- V+ is the non-inverting input voltage
- V– is the inverting input voltage
Open-Loop Mode
- No feedback is applied
- Even a small input difference drives the output to its positive or negative limit
- Used in comparator circuits, not suitable for precise amplification due to instability
Closed-Loop Mode
- Uses negative feedback to control gain
- Provides stable and linear output
- Common in signal amplifiers, buffers, and active filters
Internal Structure
- Multiple transistor stages for input, gain, and output
- Includes internal frequency compensation for stable operation
- Built-in short-circuit protection and thermal stability
Application Focus
- Best suited for low-frequency analog applications where high precision is not critical
- Commonly used in audio preamps, sensor signal amplification, and basic analog computation tasks
- Preferred in educational and prototyping environments due to its predictable performance and easy availability
LM741 Circuit Design
When designing a circuit using the LM741 operational amplifier, the following factors must be considered to ensure optimal performance：
Power Supply Requirements
Operates with ±5V to ±18V, but lower voltages reduce gain and output swing.
Bandwidth Limitations
With a 1 MHz gain-bandwidth product, it is not suitable for high-frequency applications.
Slew Rate
At 0.5V/µs, it struggles with fast signal transitions, limiting its use in high-speed circuits.
Offset Voltage
Typically 2mV, requiring compensation in precision applications.
Input Impedance
While high, it is lower than modern op-amps, potentially affecting signal integrity.
Thermal Stability
Ensure proper heat dissipation in high-power applications.
Alternative Choices
Consider TL081, LM358, or OP07 for improved performance in specific applications.
By addressing these considerations, designers can maximize the LM741’s effectiveness in analog circuit applications.
LM741 Op-Amp Applications
The LM741 operational amplifier is used in a wide range of analog electronic circuits due to its versatility and reliability. Below are its main applications:
1. Audio Preamplifier
The LM741 is commonly used to boost weak audio signals from microphones or instruments, making them suitable for further amplification in audio systems.
2. Voltage Follower (Buffer)
As a voltage follower, the LM741 provides unity gain, offering high input and low output impedance. It is often used to isolate different circuit stages without affecting signal levels.
3. Signal Amplifier
It can amplify low-level analog signals from various sensors, making it useful in instrumentation and measurement systems.
4. Comparator
Although not a dedicated comparator, the LM741 can compare two input voltages and output a high or low signal based on the difference, suitable for threshold detection.
5. Active Filters
The LM741 is used in low-pass, high-pass, band-pass, and notch filter circuits to process or clean analog signals in audio and sensor systems.
6. Waveform Generators
In oscillator configurations, the LM741 can generate waveforms like sine, square, or triangle waves, making it useful in test equipment and signal generators.
7. Educational and DIY Projects
Thanks to its simplicity and wide documentation, the LM741 is a popular choice in student experiments, prototype designs, and analog learning kits.
LM741 Equivalent and Alternatives
While LM741 is widely used, modern alternatives provide better performance.
LM741 Equivalent ICs (Pin-to-Pin Compatible)
These ICs have similar specifications and can be directly used in place of LM741:
- UA741 – Texas Instruments’ version of LM741 with the same pinout.
- LM301 – Another general-purpose op-amp with similar characteristics.
- CA3140 – Offers slightly better performance, with an additional MOSFET input stage.
- LM324 – Quad op-amp version, suitable for multiple amplifier applications.
Better Alternatives to LM741 (Improved Performance)
If you need better bandwidth, lower noise, or higher slew rate, consider these options:
- TL081 – Single op-amp with better slew rate and lower noise.
- TL071 – Low-noise JFET input op-amp, ideal for audio applications.
- OPA2134 – High-performance op-amp with better audio fidelity.
- NE5532 – Dual op-amp with low distortion, commonly used in audio circuits.
Key Differences Between LM741 and Its Alternatives
| Picture | IC Model | Bandwidth (MHz) | Slew Rate (V/µs) | Input Offset Voltage (mV) | Noise (nV/√Hz) | Special Features |
|---|---|---|---|---|---|---|
 |
LM741 | 1 | 0.5 | 6 | 25 | Standard op-amp |
 |
UA741 | 1 | 0.5 | 6 | 25 | Same as LM741 |
 |
LM301 | 1 | 0.5 | 7 | 20 | Low power |
 |
TL081 | 3 | 13 | 3 | 18 | JFET input |
 |
TL071 | 3 | 13 | 3 | 18 | Low-noise JFET |
 |
NE5532 | 10 | 9 | 0.5 | 5 | Low distortion |
 |
OPA2134 | 8 | 20 | 2 | 8 | High-fidelity audio |
For modern applications, alternatives like TL081 or OP07 provide higher precision and performance. However, for general-purpose use, the LM741 is still widely preferred.
LM741 Package types
The LM741 operational amplifier is available in two package types: 8-DIP (Dual In-line Package) and 8-SOP (Small Outline Package).

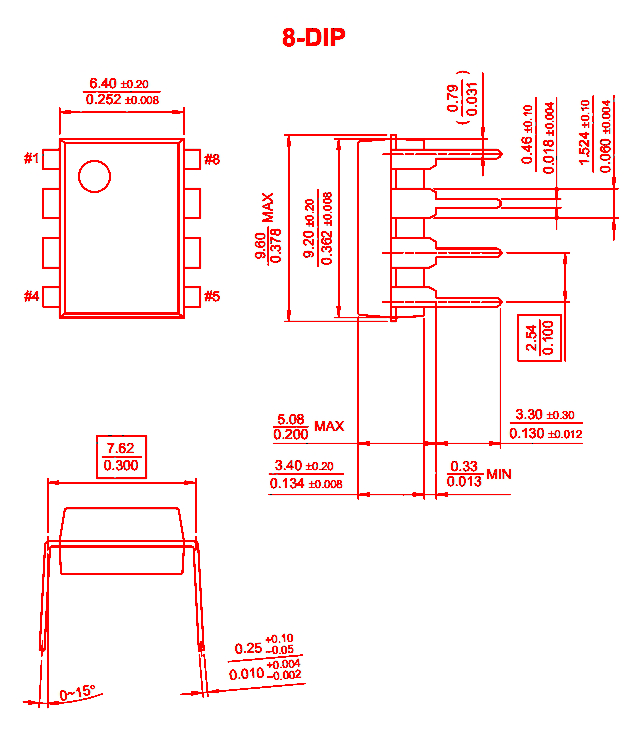

8-DIP (DIP-8):
A through-hole package with a typical pin pitch of 2.54mm, suitable for traditional PCB designs and breadboard prototyping. It is easier for manual soldering and experimentation.
8-SOP (SOP-8):
A surface-mount package designed for compact circuit designs and automated assembly. It is ideal for applications requiring miniaturization and high-density integration.
Conclusion
The LM741 op-amp remains a popular general-purpose operational amplifier, ideal for low-frequency signal processing, voltage amplification, and analog computing. While its limited slew rate and bandwidth make it unsuitable for high-speed applications, it continues to be a reliable and cost-effective choice for many circuit designs.
Please send RFQ , we will respond immediately.
Frequently Asked Questions
What is the typical price of an LM741 op-amp?
The LM741 is a low-cost op-amp, typically priced between $0.10 and $0.50 USD per unit in volume. The exact price varies based on manufacturer, package type, quantity, and supplier.
Where can I get the LM741 datasheet and what does it include?
You can download the LM741 datasheet directly from our website. It provides essential information including pin configuration, electrical specifications, thermal ratings, and application examples—everything needed for proper use in analog circuit designs.
Are there counterfeit LM741 chips on the market?
Yes, counterfeit or poor-quality clones of LM741 may exist, especially on low-cost bulk platforms. It’s advised to purchase from authorized distributors to ensure component quality, especially for commercial or medical designs.
Can LM741 be used with a single power supply?
Yes, the LM741 can operate with a single power supply, although it is traditionally used with a dual ±V supply.
How many transistors in LM741?
The LM741 op-amp contains approximately 20 transistors, organized into differential input, gain, and output stages, along with internal compensation and bias circuitry.
How much current can a LM741 support?
The LM741 can typically source or sink up to 25 mA of output current, but exceeding this may lead to distortion or trigger internal short-circuit protection.
