LM324 Op Amp Pinout, Features, Circuit and Equivalent

Op-Amps, Part 1: OpAmp LM324N Comparator

The LM324 is one of the most widely used operational amplifier ICs in the world of electronics. Whether you’re designing a simple audio amplifier, working with signal processing, or building low-power sensor circuits, the LM324 offers a versatile and cost-effective solution. In this article, we will explore the key features of the LM324, how it works, its pinout configuration, common applications, and real-world use cases, all while optimizing for SEO keywords that drive traffic and engagement.

What is LM324?

The LM324 is a quad op-amp IC, meaning it contains four independent operational amplifiers in a single 14-pin package. It was developed by Texas Instruments and is widely used for signal amplification, filtering, and voltage comparison in various analog circuit designs.

This IC is perfect for applications where low-voltage operation, low power consumption, and space-saving are critical. The LM324 is commonly used in applications like audio systems, sensor signal conditioning, voltage followers, and many more.

Key Features of LM324

Understanding the LM324’s features will help you appreciate why it is so widely used in electronics. The LM324 offers several advantages, such as low power consumption, versatility, and reliability. Let’s take a closer look at its core features:

1. Quad Op-Amp Configuration

The LM324 integrates four operational amplifiers in one package, making it ideal for reducing component count in your designs. Each op-amp can be used independently for different tasks like amplification, signal processing, and filtering.

2. Single-Supply Operation

Unlike some op-amps that require dual power supplies, the LM324 operates on a single supply voltage, typically ranging from 3V to 32V. This makes it perfect for battery-operated devices and low-power designs.

3. Low Power Consumption

The LM324 is designed for low power consumption, making it a great choice for energy-efficient applications like battery-powered sensors, low-voltage audio amplifiers, and other portable electronics.

4. Wide Input Voltage Range

The LM324 is capable of accepting input voltages very close to the ground, allowing it to operate in systems with lower signal levels, making it more versatile in signal processing applications.

5. Rail-to-Rail Output

Another key feature of the LM324 is its rail-to-rail output, meaning that the output voltage can swing very close to the supply rails. This characteristic makes the IC highly effective in low-voltage and low-power systems, where maximizing the output voltage range is crucial.

6. Low Offset Voltage

The LM324 has a low input offset voltage, which minimizes errors in applications that require high precision, such as audio amplification and measurement systems.

LM324 Pinout

The LM324 pinout consists of 14 pins, with each pin serving a specific function. Understanding the pin configuration is essential for designing circuits and implementing the LM324 IC in your applications.

Pin Configuration:

Pin Number	Pin Function	Description
1	1OUT	Output of op-amp 1
2	1IN-	Inverting input of op-amp 1
3	1IN+	Non-inverting input of op-amp 1
4	VCC+	Positive power supply
5	2IN+	Non-inverting input of op-amp 2
6	2IN-	Inverting input of op-amp 2
7	2OUT	Output of op-amp 2
8	3OUT	Output of op-amp 3
9	3IN-	Inverting input of op-amp 3
10	3IN+	Non-inverting input of op-amp 3
11	VCC-	Negative power supply (ground)
12	4IN+	Non-inverting input of op-amp 4
13	4IN-	Inverting input of op-amp 4
14	4OUT	Output of op-amp 4

This layout ensures that the IC can be used in a wide range of configurations, from amplifiers to active filters and comparators.

How LM324 Works: Working Principle

The LM324 is a versatile operational amplifier (op-amp) used in signal amplification and comparator circuits. It amplifies the difference between the inverting and non-inverting inputs, making it ideal for both analog and digital applications.

LM324 as an Operational Amplifier

In op-amp mode, the LM324 amplifies the voltage difference between the inputs. This makes it perfect for tasks like signal processing and audio amplification, where weak signals need boosting.

LM324 as a Comparator

As a comparator, the LM324 compares two input voltages and outputs either high or low. It’s used in threshold detection and digital decision-making circuits.

Amplification with LM324

In amplification circuits, the LM324 boosts weak signals such as sensor outputs or audio signals, making them easier to process. The gain can be adjusted with external components.

LM324 Circuit Diagram

Here’s a look at a basic LM324 circuit diagram:

1. Amplifier Circuit:

The LM324 is commonly used in audio amplification circuits, where weak audio signals need to be amplified to drive speakers. A simple resistor network sets the gain.

2. Comparator Circuit:

A basic comparator circuit involves connecting the non-inverting and inverting inputs to different voltage levels. The output switches between the high and low supply rails depending on which input is higher.

3. Active Filter Circuit:

In active filter circuits, the LM324 can help build low-pass, high-pass, or band-pass filters. These circuits are widely used in signal conditioning to isolate specific frequencies.

LM324 Applications

The LM324 finds use in a wide array of electronic applications, including:

1. Audio Amplification

The LM324 is commonly used in low-power audio amplifiers. It amplifies weak audio signals, making it ideal for use in hearing aids, small speakers, and portable audio systems.

2. Signal Processing

The IC is used in signal processing applications, including active filters, signal conditioning, and waveform generation, where accurate amplification and signal shaping are required.

3. Voltage Comparison

As a comparator, the LM324 compares two input voltages and outputs a high or low signal depending on the comparison. It’s used in threshold detectors, decision-making circuits, and digital logic.

4. Sensing and Measurement

In sensor applications, the LM324 is used to amplify sensor signals, making them readable for microcontrollers or other digital systems. Its low offset voltage and wide input voltage range make it perfect for sensor signal conditioning.

How to Use LM324 as a Comparator

The LM324 is a comparator IC used to compare voltages in circuits.

Step 1: Basic Configuration

Compare voltages at the non-inverting input (V+) and inverting input (V-). Output is high or low depending on which input is higher.

Step 2: Connect Inputs

• Non-inverting input (Pin 3/5): Reference signal.
• Inverting input (Pin 2/6): Signal to compare.

Step 3: Power Supply

Use a single supply voltage (3V to 32V). Connect Vcc (Pin 14) to positive, Vee (Pin 11) to ground.

Step 4: Set Threshold

Use a voltage divider or potentiometer to set the reference voltage.

Step 5: Output Response

When inputs cross the threshold, the output switches between high and low.

LM324 Equivalent ICs

There are several LM324 equivalent ICs that offer similar performance. Some of the most popular equivalents include:

LM324 Equivalent	Manufacturer	Description
TL084	Texas Instruments	Low-noise quad op-amp
MC3404	ON Semiconductor	Low-power quad op-amp
LM324N	Texas Instruments	Standard quad op-amp (DIP package)
LM324A	Texas Instruments	Precision quad op-amp
KA324	Fairchild	Low-power quad op-amp
TLV2374	Texas Instruments	Low-voltage, low-power quad op-amp

LM324 Datasheet

For detailed specifications on parameters like operating voltage, quiescent current, and output voltage swing, refer to the LM324 datasheet. It offers essential data for designing circuits effectively.

Parameter	Value	Description
Operating Voltage	3V to 32V (single supply)	Voltage range for operation.
Output Voltage Swing	VSS + 0.5V to VCC – 0.5V	Output voltage range relative to supply rails.
Quiescent Current	1.0 mA per op-amp	Current drawn by the IC when idle.
Input Offset Voltage	3 mV (typical)	Voltage difference between input terminals.
Slew Rate	0.3 V/µs (typical)	Rate of output voltage change.
Operating Temp	-40°C to +85°C	Temperature range.
Package Types	14-pin DIP, SOIC	Available package options.
Power Consumption	3 mW (typical)	Power consumed by the device.

LM324 package

The LM324 is available in 14-pin packages, including DIP (Dual In-line Package), SOIC (Small Outline Integrated Circuit), and TSSOP (Thin Shrink Small Outline Package). The DIP package is used for through-hole mounting, while SOIC and TSSOP are designed for surface-mounting in compact applications.

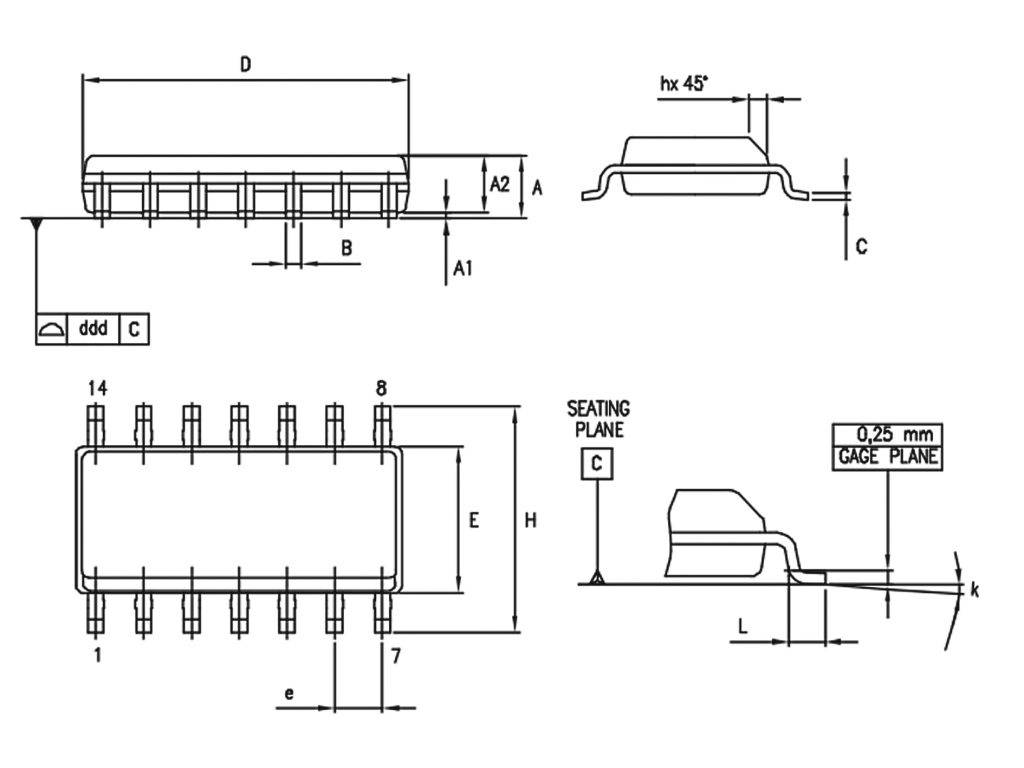

SOIC package

Conclusion

The LM324 is a highly versatile and cost-effective operational amplifier IC used in a wide variety of applications. From audio amplification to sensor signal conditioning, the LM324 offers excellent performance with low power consumption and a single-supply voltage range. It is an essential tool for engineers and hobbyists alike.

Whether you’re building low-voltage electronics, signal processing circuits, or exploring new project ideas, the LM324 IC is an excellent choice due to its affordability, ease of use, and broad range of applications.
