MPSA92 Transistor | Datasheet | Pinout | Equivalent Diotec Semiconductor

The MPSA92 is a reliable PNP transistor, ideal for use in various applications, including negative bias regulators. The Reference manual offers detailed information, including its pinout and complementary configurations. For those seeking an equivalent or replacement, the MPSA92 is widely compatible with multiple models. Explore its spice model and circuit design options to enhance your projects.

Бренды: Диотек Полупроводник

Скачать: MPSA92 Datasheet PDF

Цена: расследование

В наличии: 27,318

Transistor Type: PNP

Токосъемник (Ic) (макс.): 500 mA

Voltage-Collector Emitter Breakdown (Max): 300 V

Упаковка: TO-226-3, TO-92-3 (TO-226AA)

БЕСПЛАТНАЯ доставка для заказов свыше HK$250.00

Быстрый ответ, быстрая расценка

Быстрая отправка, никаких проблем после продажи

Оригинальный канал, гарантия подлинности продукции

MPSA92 Equivalent

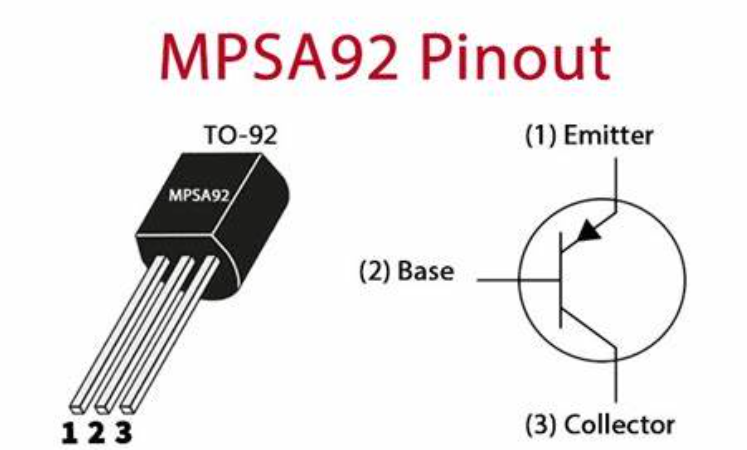

mpsa92 Picture

The MPSA92 is a high performance PNP type bipolar junction transistor (BJT) that is widely used in high voltage, low current circuit designs. Its high withstand voltage and very stable performance make it the device of choice for many circuit designs. In this article, the MPSA92 is described in detail and its replacement is recommended.

Main Characteristics:

Type: PNP

Collector-emitter voltage (VCEO): 300V (maximum collector-emitter voltage that the transistor can withstand, can be suitable for high voltage applications).

Collector Current (IC): 500mA (maximum collector current is 500mA, suitable for low to medium current circuits).

Operating Energy Consumption:625mW (625mW max., requires attention to thermal design).

DC Current Gain (hFE): 25~40

Wide range of current gain, suitable for a wide range of amplification and switching circuits.

Package: TO-92 (common three-pin package for easy soldering, mounting and heat dissipation).

Temperature range for normal operation: -55°C to +150°C

List of alternative products:

Name	Type	VR	IC	VCE(sat)	PD	Package
MMBTA92	PNP	300V	500mA	200mV	350mW	SOT-23
MSB92WT1G	PNP	300V	200mA	500mV	150mW	SC-70-3
FZT757TA	PNP	300V	500mA	500mV	1.6W	SOT-223-3
KSP92TA	PNP	300V	500mA	500mV	625mW	TO-92-3
PZTA92T1G	PNP	300V	500mA	500mV	1.5W	SOT-223-3

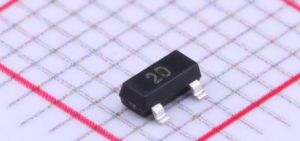

MMBTA92 Picture

MSB92WT1G Picture

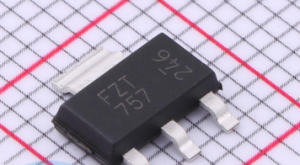

FZT757TA Picture

KSP92TA Picture

PZTA92T1G Picture
