BMI088 breakout & shuttle board | vs BMI270

Discover the versatile BMI088 breakout board and BMI088 shuttle board, perfect for your projects. Compare BMI088 vs BMI270 and BMI088 vs BMI323 for optimal performance. Access the BMI088 Reference manual, explore the BMI088 Arduino library and BMI088 STM32 integration, and understand BMI088 calibration and BMI088 pinout. Check the BMI088 price and enhance your designs with the Grove 6-axis accelerometer gyroscope BMI088.

Бренды: Bosch Сенсортек

Скачать: BMI088 Datasheet PDF

Цена: 10.7

В наличии: 6,698

Sensor Type: Accelerometer, Gyroscope, 6 Axis

Тип вывода: I²C, SPI

Operating Temperature: -40°C ~ 85°C

Упаковка: 16-LGA (4.5x3)

BMI088 Pinout Equivalent

1：Overview of the BMI088:

The BMI088 is a six-axis inertial measurement unit (IMU) sensor produced by Bosch, suitable for drones and other high-performance consumer applications. It integrates a 16-bit three-axis gyroscope and a three-axis accelerometer in a compact package, capable of simultaneously measuring linear acceleration and angular velocity, supporting six degrees of freedom (6DoF) motion detection. The sensor features high vibration stability, effectively suppressing high-frequency vibrations caused by PCB resonance or system structural resonance, ensuring data accuracy in harsh environments. The BMI088 can optimize power consumption based on application requirements. It is widely used in consumer electronics, drones, robotics, virtual reality (VR), and augmented reality (AR), providing reliable motion detection and posture control.

2：BMI088 Important pin function definition:

Pin	Name	I/O Type	Описание	SPI mode	I²C mode
1*	INT2	Digital I/O	Interrupt pin 2 (accel int #2)	INT2	INT2
2	NC	—	—	GND	GND
3	VDD	Поставлять	Power supply analog & digital domain (2.4 – 3.6V)	VDD	VDD
4	GNDA	Ground	Ground for analog domain	GND	GND
5	CSB2	Digital in	SPI Chip select Gyro	CSB2	DNC (float)
6	GNDIO	Ground	Ground for I/O	GND	GND
7	ПС	Digital in	Protocol select gyroscope (GND = SPI, VDDIO = I²C)	GND	VDDIO
8	SCL / SCK	Digital in	SPI: serial clock SCK, I²C: serial clock SCL	SCK	SCL
9	SDA / SDI	Digital I/O	I²C: SDA serial data I/O, SPI 4W: SDI serial data, SPI 3W: SDA serial data I/O	SDI	SDA
10	SDO2	Digital out	SPI Serial data out Gyro, Address select in I²C mode (see chapter 9.2)	SDO2	GND (for default addr.)
11	VDDIO	Поставлять	Digital I/O supply voltage (1.2V … 3.6V)	VDDIO	VDDIO
12*	INT3	Digital I/O	Interrupt pin 3 (gyro int #1)	INT3	INT3
13*	INT4	Digital I/O	Interrupt pin 4 (gyro int #2)	INT4	INT4
14	CSB1	Digital in	SPI Chip select Accel	CSB1	VDDIO or DNC (float)
15	SDO1	Digital out	SPI Serial data out Accel, Address select in I²C mode (see chapter 9.2)	SDO1	GND (for default addr.)
16*	INT1	Digital I/O	Interrupt pin 1 (accel int #1)	INT1	INT1

3：Рекомендация альтернативной модели

LIS3DHTR：LIS3DH is an ultra-compact and low-power three-axis linear accelerometer launched by STMicroelectronics. It has high resolution, wide dynamic range and multiple selectable measurement ranges. It can perform data communication through I2C or SPI interface and is applicable in fields such as wearable devices, motion monitoring, industrial control, and consumer electronics to achieve functions such as tilt detection, motion tracking, and vibration monitoring.

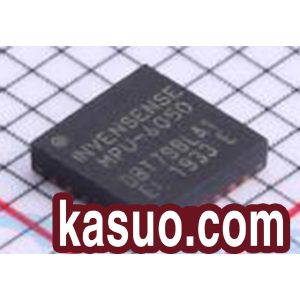

MPU-6050：The MPU-6050 is a 6-axis motion processing unit from InvenSense, integrating a 3-axis accelerometer and a 3-axis gyroscope. It features a compact size and low power consumption, providing digital signals via the I2C interface. It is widely used in smartphones, wearable devices, drones, and other fields for motion posture detection and control.

ADXL345BCCZ-RL7：The ADXL345BCCZ-RL7 is a high-performance three-axis digital accelerometer from Analog Devices, USA. It comes in an LGA-14 package with standard tape packaging. This sensor features ultra-low power consumption, high resolution, multiple detection functions, and flexible interfaces and interrupt modes. It is widely used in various fields such as industrial applications, aerospace, and mobile phones.

LIS2DW12：The LIS2DW12 is a high-performance, ultra-low-power three-axis linear accelerometer from STMicroelectronics, featuring 16-bit data output, multiple user-selectable full-scale ranges, flexible output data rates, an integrated dedicated internal engine, and a 32-level FIFO buffer. It offers various motion detection capabilities and comes in a small plastic land grid array package, capable of operating across a wide temperature range.
