TSOP38238 Pinout Equivalent

1：Overview of the TSOP38238：

The TSOP38238 is an infrared receiver module produced by Vishay, operating at 38kHz and housed in a TSOP package. It is designed for infrared remote control systems used in home appliances, remote controls, and smart homes. The module includes a PIN photodiode and a preamplifier, featuring an internal infrared filter that effectively blocks non-38kHz interference signals. It supports a wide voltage input range of 2.5V to 5.5V.

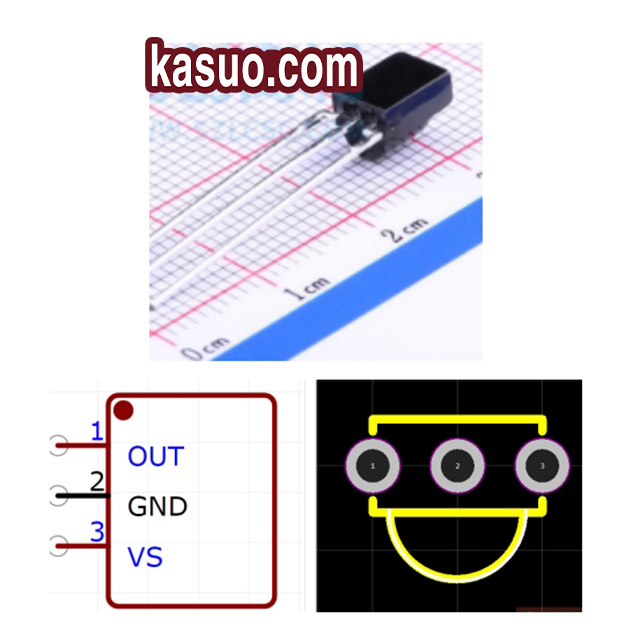

2：TSOP38238 Important pin function definition:

3：Alternative model recommendation

TSSP6038TR：TSSP6038TR is an integrated infrared receiver head that combines functions such as an infrared photodiode, preamplifier, and demodulator within a single package, offering a simple and efficient solution for infrared remote control systems.

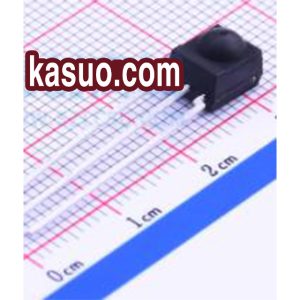

TSSP4038：The TSSP4038 integrates functions such as infrared photodetectors, preamplifiers, automatic gain control, bandpass filters, and demodulators. When an infrared signal illuminates the TSSP4038’s infrared detector, it converts the optical signal into a weak electrical signal.

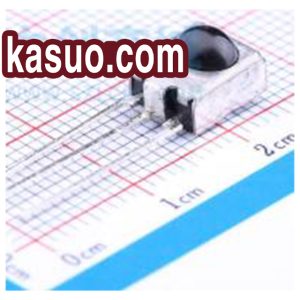

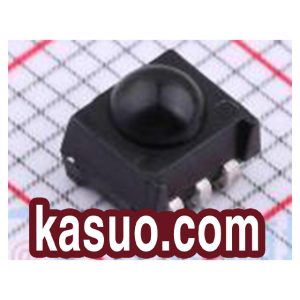

DY – IRMHA384 – T05 – 2KB：DY – IRMHA384 – T05 – 2KB is a high-performance integrated infrared receiver module designed to meet the demands of complex infrared remote control scenarios. It integrates functions such as infrared reception, signal amplification, filtering, and demodulation into a compact package, significantly simplifying circuit design and saving PCB space, making it suitable for devices with stringent space requirements.
