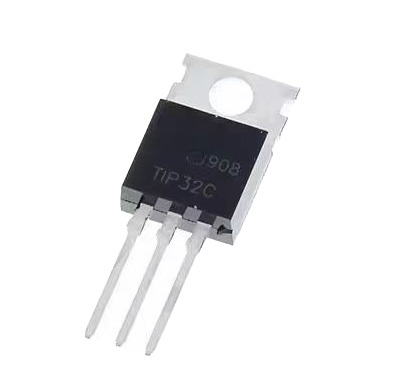

TIP32C | PNP Transistor Equivalent, Pinout, Uses & Replacement STMicroelectronics
- Brands: STMicroelectronics
- Download: TIP32C Datasheet PDF
- Package: TO-220-3
- Series: -
- In Stock: 11,249
- Transistor Type: PNP
- Current-Collector(Ic)(Max): 3 A
- Voltage-Collector Emitter Breakdown (Max): 100 V
- Vce Saturation(Max)@IbIc: 1.2V @ 375mA, 3A
- Price: inquiry
TIP32C Pinout
TIP32C Pinout Diagram
The TIP32C is a PNP power transistor commonly used for switching and amplification purposes. Its pinout consists of three main terminals:
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | Base | The base controls the operation of the transistor. It receives the input signal and regulates the flow of current between the collector and emitter. |
| 2 | Collector | The collector is the output terminal where current flows out of the transistor. The amount of current flowing through the collector is determined by the base current. |
| 3 | Emitter | The emitter is where current enters the transistor. In a typical configuration, it is connected to the positive supply voltage for PNP transistors like the TIP32C. |
This layout is typical for PNP transistors, where the current flows from the emitter to the collector when activated by a small current at the base. The TIP32C is often used in power amplification and switching circuits due to its high current handling capacity.
