TIP147 Equivalent

The TIP147 is a high-power NPN Darlington transistor widely used for general-purpose amplification and switching applications. Below is a comparison of equivalent parts to the TIP147, offering similar specifications and performance in various applications. These alternatives may have slight differences in package type, voltage rating, and current handling capacity.

Picture	Part Number	Manufacturer	Package Type	Voltage Rating (V)	Current Rating (A)	Power Dissipation (W)

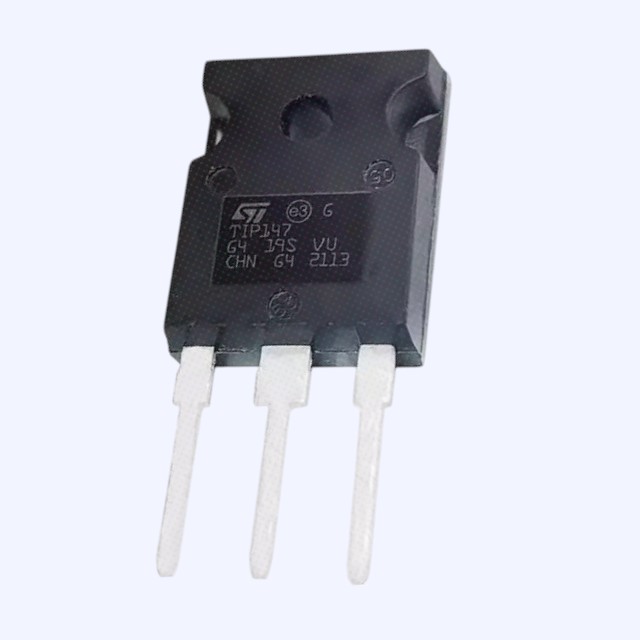

	TIP147	STMicroelectronics	TO-220	80	16	125

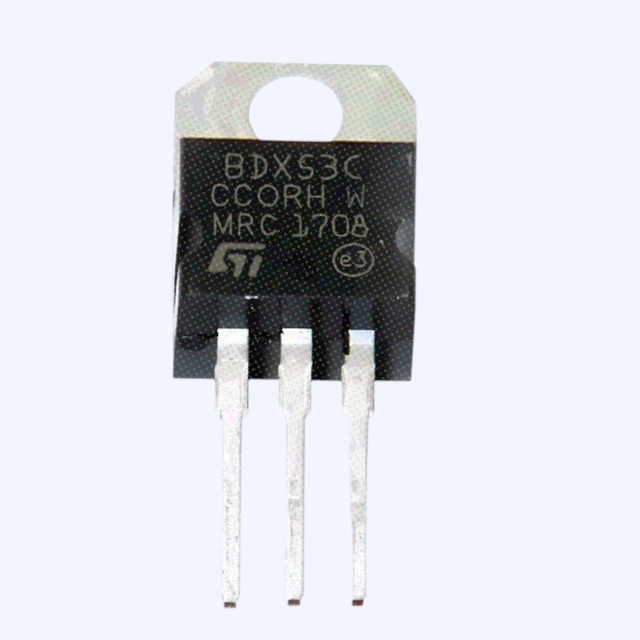

	BDX53C	STMicroelectronics	TO-220	80	15	120

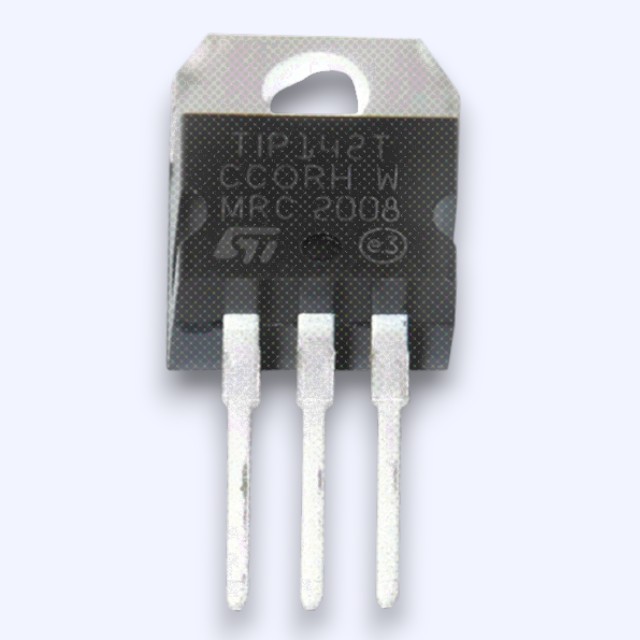

	TIP142	ON Semiconductor	TO-220	100	12	125

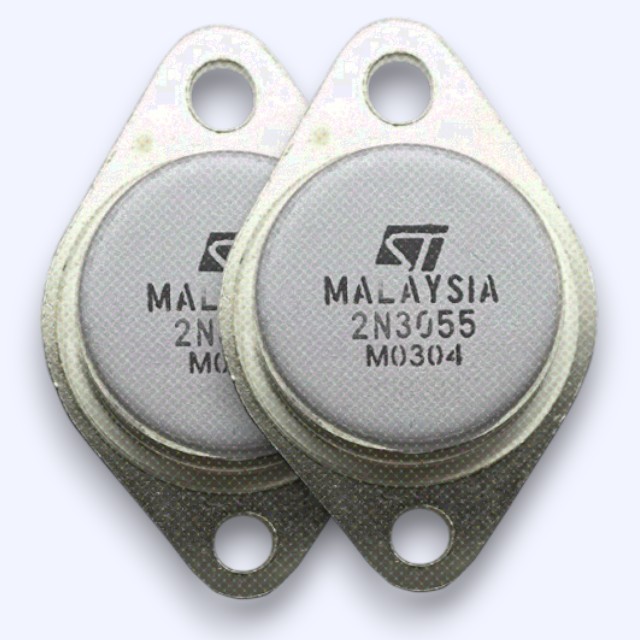

	2N3055	ON Semiconductor	TO-3	60	15	115

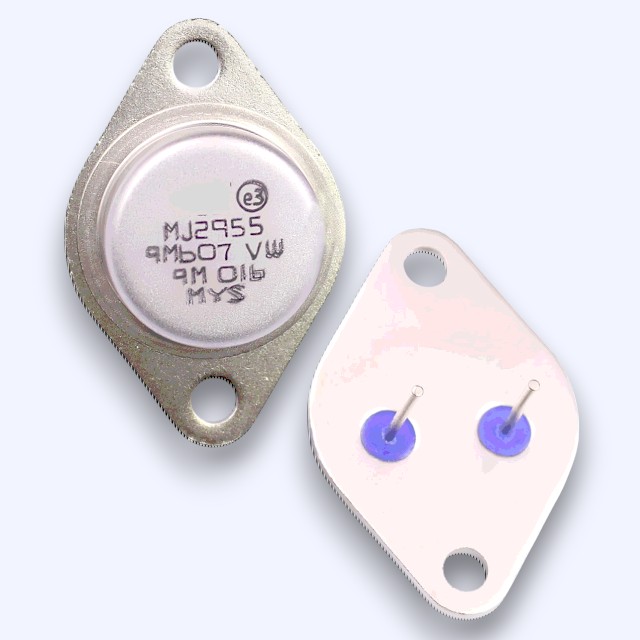

	MJ2955	ON Semiconductor	TO-3	60	15	115

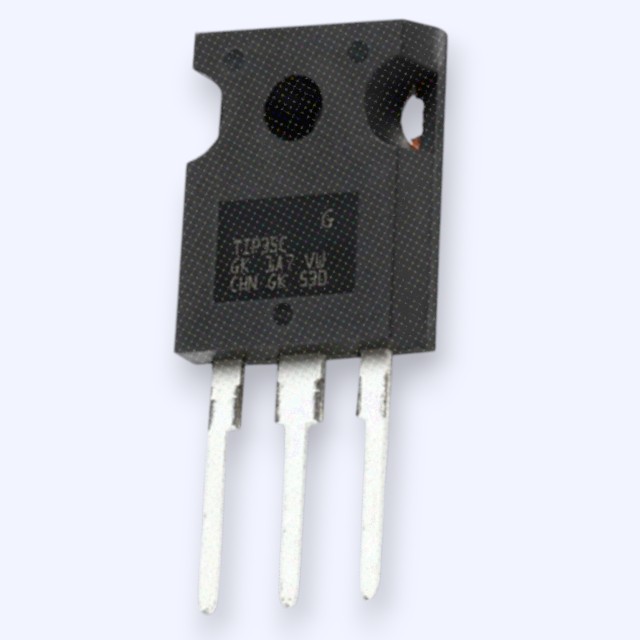

	TIP35C	ON Semiconductor	TO-220	80	15	125

These TIP147 equivalent parts provide a range of options with varying specifications, allowing engineers to select the most suitable transistor based on application requirements such as voltage, current, and power dissipation. Each part listed here offers comparable performance, with minor differences in package type and power handling.
