S9014 Transistor | Datasheet | Equivalent | Pinout MDD

The S9014 transistor is a widely used NPN transistor ideal for general-purpose amplification and switching applications. If you're searching for an S9014 equivalent transistor, options like the S9014 C331 transistor can serve as replacements. For detailed information, refer to the S9014 datasheet or Reference manual, which includes essential data like pinout, circuit diagrams, and transistor uses. Whether you're designing an amplifier circuit or replacing components, the S9014 transistor offers reliable performance.

Brands: MDD

Download: -

Package: TO-236-3, SC-59, SOT-23-3

Series: SOT-23

In Stock: 1,707,000

Transistor Type: NPN

Current-Collector(Ic)(Max): -

Voltage-Collector Emitter Breakdown (Max): 50 V

Vce Saturation(Max)@IbIc: 300mV @ 5mA, 100mA

Price: inquiry

S9014 Transistor Pinout

S9014 An NPN-type triode that can control current by adjusting the current at the base. It is mostly used in signal amplification and as a switching element.

Here are its pinout

Pin	Designation	Descriptive
1	E (Emitter)	Connect to ground (GND) or the negative terminal of the power supply
2	B (Base)	Controls the switching or amplifying function of a triode.
3	C (Collector)	Connect to the positive terminals of the load and power supply

Note:

The maximum power consumption is 400mW to avoid overloading the transistor.

S9014 Yransistor Equivalent

The S9014 is a small-signal NPN transistor used for low-power amplification and switching. The following table compares the S9014 with equivalent transistors that share similar electrical properties, providing options for various circuit applications.

S9014 Equivalent Transistor	Manufacturer	Vce (Collector-Emitter Voltage)	Ic (Collector Current)	Ptot (Power Dissipation)	Hfe (DC Current Gain)	Package Type	Application
S9014	MDD	40V	0.15A	500mW	200-600	TO-236-3	Low signal amplification
BC547B	Diotec Semiconductor	45V	0.1A	500mW	110-800	TO-92	General purpose NPN transistor

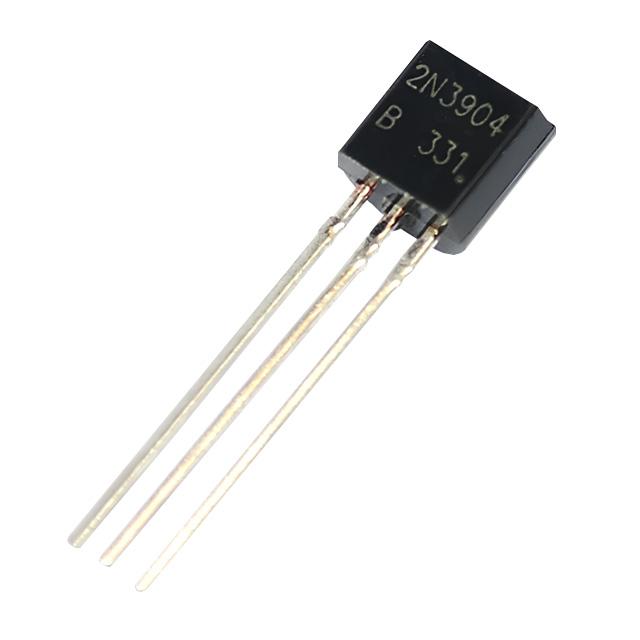

2N3904	ON Semiconductor	40V	0.2A	625mW	100-300	TO-92	Low-power switching

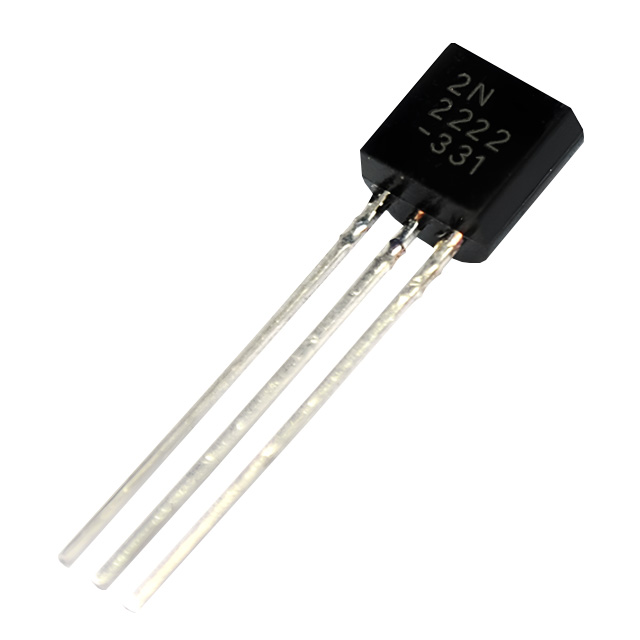

2N2222	ON Semiconductor	40V	0.8A	500mW	100-300	TO-92	General purpose switch
S8050	Sanken Electric	40V	1A	500mW	110-800	TO-92	Switching and amplification

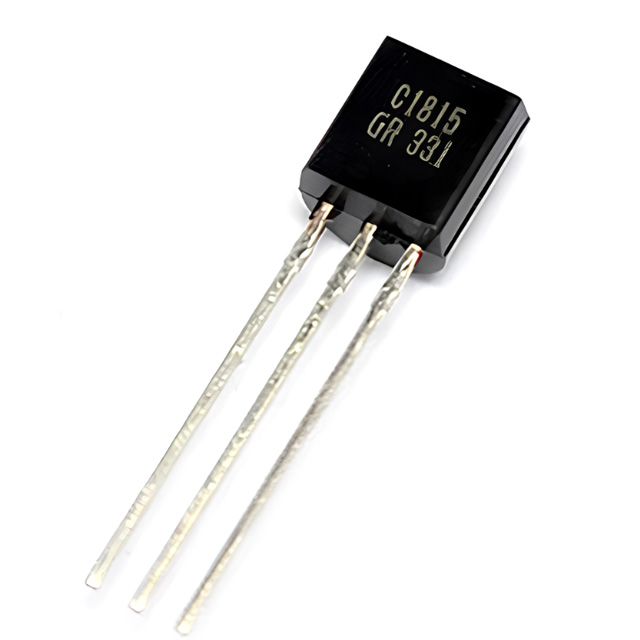

C1815	Rohm Semiconductor	50V	0.15A	150mW	200-600	TO-92	Low-power amplifier
2N5401	ON Semiconductor	50V	0.15A	625mW	100-300	TO-92	High-gain NPN transistor

The S9014 and its equivalents offer suitable choices for low-power applications. Each option varies in current handling and power dissipation, allowing for flexible design choices based on specific needs.
