MUR460 Diode Equivalent

The mur460 is a fast recovery diode with ultra-high withstand voltage value (600V); supports a maximum operating current of 4A (widely used in medium power applications) and a peak current of up to 125A (good protection for circuits); the recovery time is 50ns; the package is a DO-201AD, in-line design with good heat dissipation.

Typical application scenarios:

High frequency power supply circuits:

Switching power supply circuit: in as a continuous current diode, can enhance the conversion efficiency;

Inverter circuits: used for AC motor speed regulation, can reduce switching losses and improve efficiency.

In industrial design:

Uninterruptible power supply (UPS): the use of current-continuing diodes to ensure the continuous stability of high-frequency charging and discharging;

High-frequency heating equipment: can support fast switching state and reduce heat loss.

Other scenes:

Lighting circuits: in lighting circuits, can be adapted to high-frequency LED power supply, has arrived at the realisation of stable and continuous power supply;

Pulse modulation circuits (PWM): can be used for the rectification of PWM waveforms (output more stable PWM, reduce unwanted bumps and burrs).

Protection circuit: Because mur460 has the reason of fast recovery and ultra-high limit parameter, it can be connected in series in the circuit to avoid the problems caused by the power supply reverse connection and other errors.

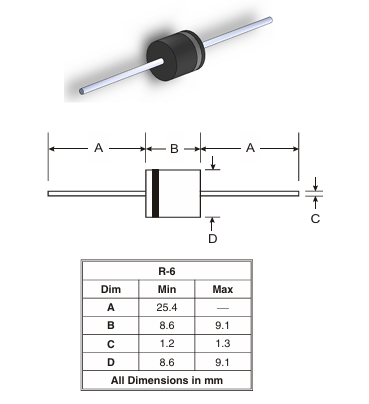

HER608 Picture

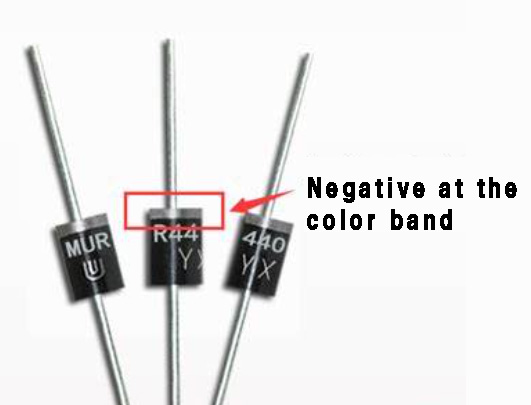

MUR440 Picture

MUR460RLG Picture

STTH5R06 Picture

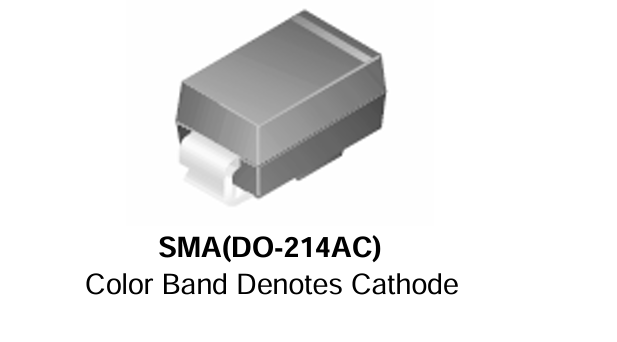

ES1J Picture
