MPSA06 Transistor | MPSA06 Datasheet | MPSA06 Equivalent | MPSA06 Pinout NTE Electronics, Inc

The MPSA06 is an NPN transistor ideal for various applications. Known for its 80V and 500mA capabilities, this component is often used as a clipping diode and in amplifier circuits. The Reference manual and datasheet for the MPSA06 provide detailed specifications for easy integration and replacement. Find more information on its pinout, SPICE model, and equivalents for compatibility with different designs.

Brands: NTE Electronics, Inc

Download: MPSA06 Datasheet PDF

Package: TO-226-3, TO-92-3 (TO-226AA)

Series: -

In Stock: 500

Transistor Type: NPN

Current-Collector(Ic)(Max): 500 mA

Voltage-Collector Emitter Breakdown (Max): 80 V

Vce Saturation(Max)@IbIc: 250mV @ 10mA, 100mA

Price: inquiry

MPSA06 Transistor Equivalent

This is a table of equivalent components for the MPSA06, they all act as amplifiers, switches or control currents etc.

Name	Makers	Maximum Power	Maximum Current	Maximum Voltage	Package Type

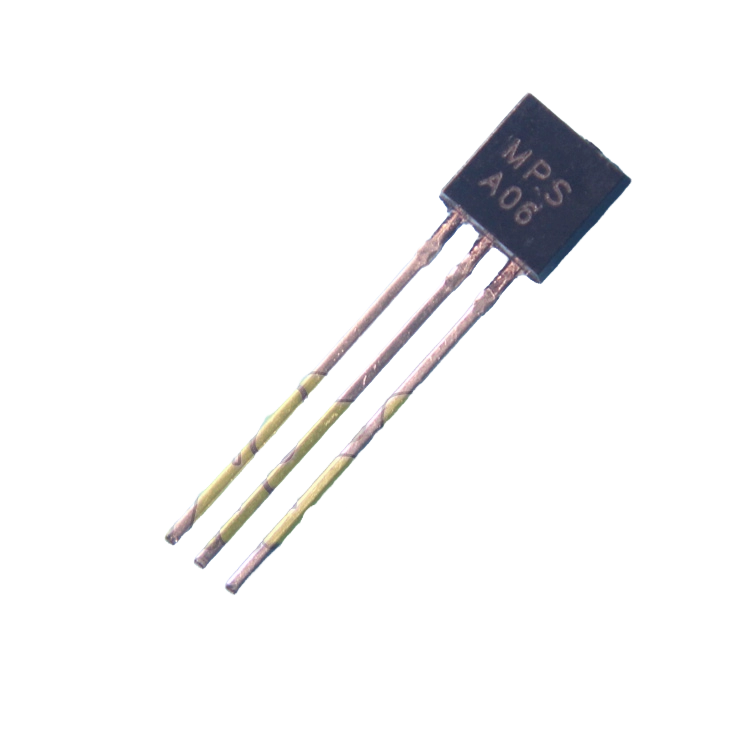

MPSA06	ON Semiconductor	0.8W	500mA	80V	TO-92

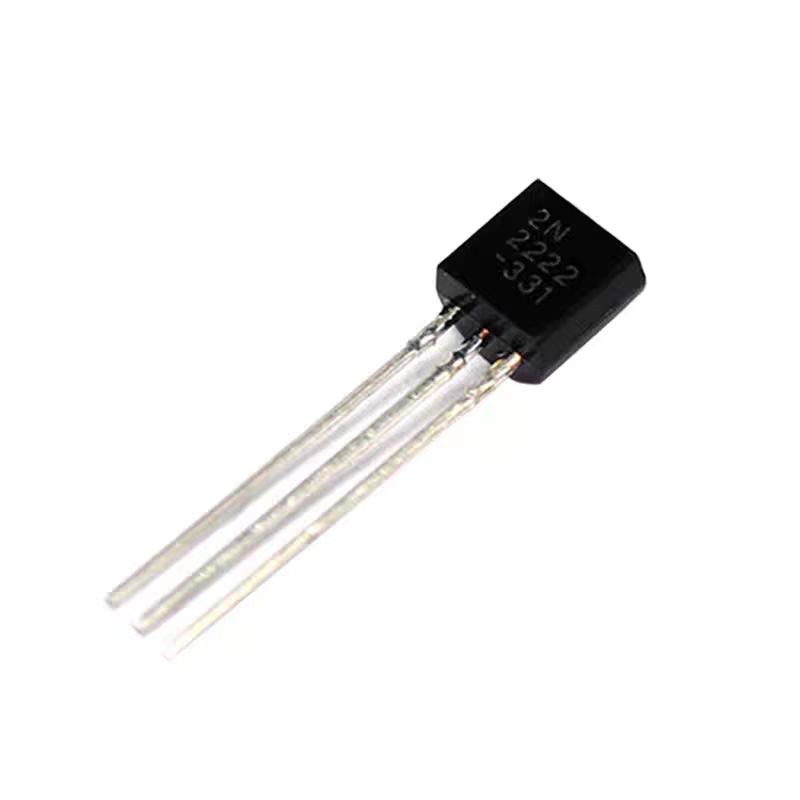

2N2222	ON Semiconductor	0.625W	800mA	40V	TO-92

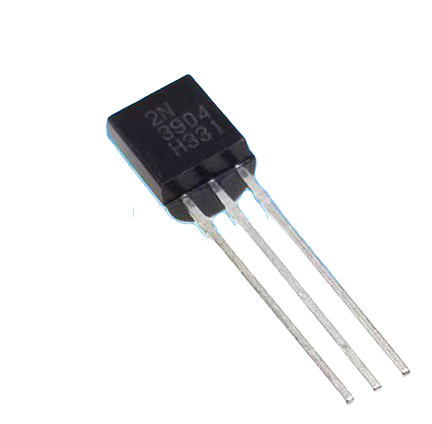

2N3904	Diodes Incorporated	0.625W	200mA	45V	TO-92

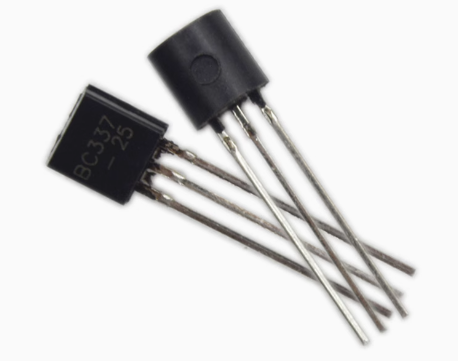

BC337	STMicroelectronics	0.9W	800mA	45V	TO-92

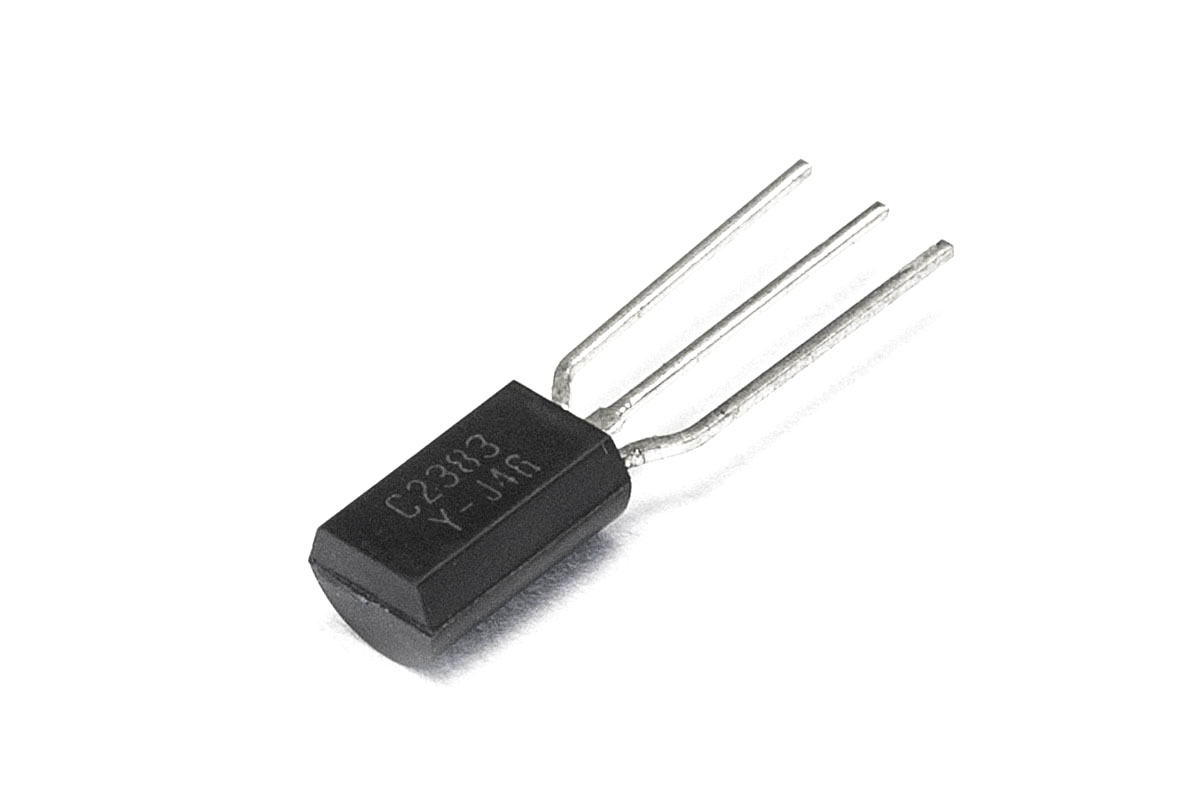

KSC2383	Korea Electronics	0.625W	1A	160V	TO-92MOD

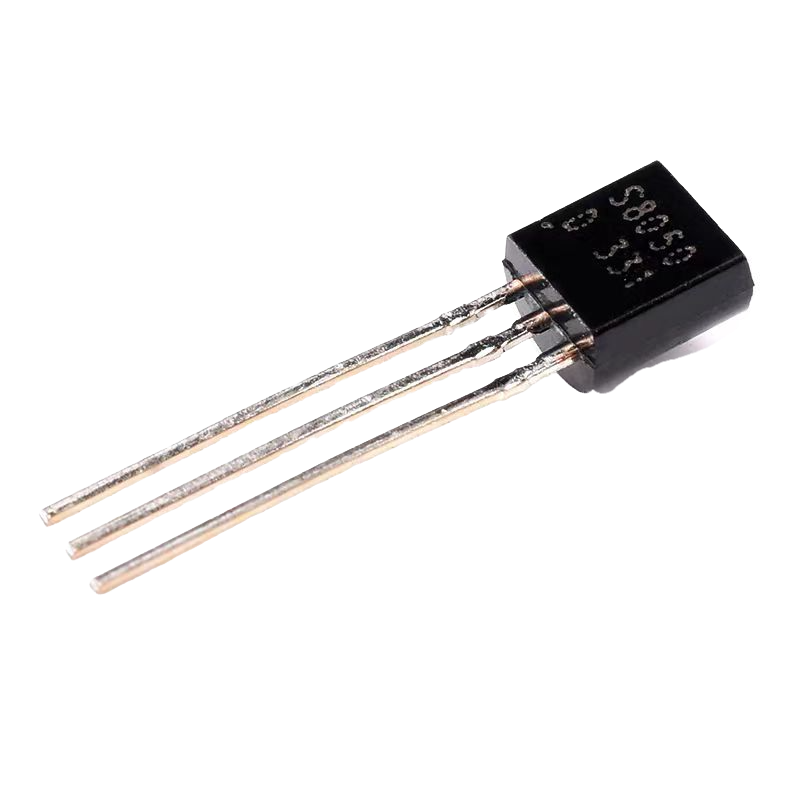

S8050	JCET Group	0.625W	700mA	40V	TO-92

Note:

When replacing the MPSA06 with a 2N2222, 2N3904, BC337, KSC2383, or S8050, consider whether the voltage, current, and power in the actual circuit will damage them.
