MMBT5551 Transistor | Equivalent | SMD | Datasheet onsemi

The MMBT5551 is a high-performance transistor, often used in various SMD applications. For detailed specifications, including its SPICE model, equivalent options, and more, refer to the Reference manual. This device is available from trusted suppliers like Fairchild and Mouser.

Brands: onsemi

Download: MMBT5551 Datasheet PDF

Package: TO-236-3, SC-59, SOT-23-3

Series: -

In Stock: 472,276

Transistor Type: NPN

Current-Collector(Ic)(Max): 600 mA

Voltage-Collector Emitter Breakdown (Max): 160 V

Vce Saturation(Max)@IbIc: 200mV @ 5mA, 50mA

Price: inquiry

MMBT5551 Transistor Equivalent Type Table

Here is the equivalent component replacement table for MMBT5551, all are bipolar transistor conduits with NPN type polarity. They are mainly used for power switching,

Model Name	Makers	Maximum Power	Maximum Current	Maximum Voltage	Package Type
MMBT5551	ON Semiconductor	350mW	600mA	160V	SOT-23
MMBT2484LT1	ON Semiconductor	300mW	100mA	60V	SOT-23
SMMBT5551LT1G	ON Semiconductor	300mW	600mA	160V	SOT-23
KST5551MTF	ON Semiconductor	350mW	600mA	160V	SOT-23

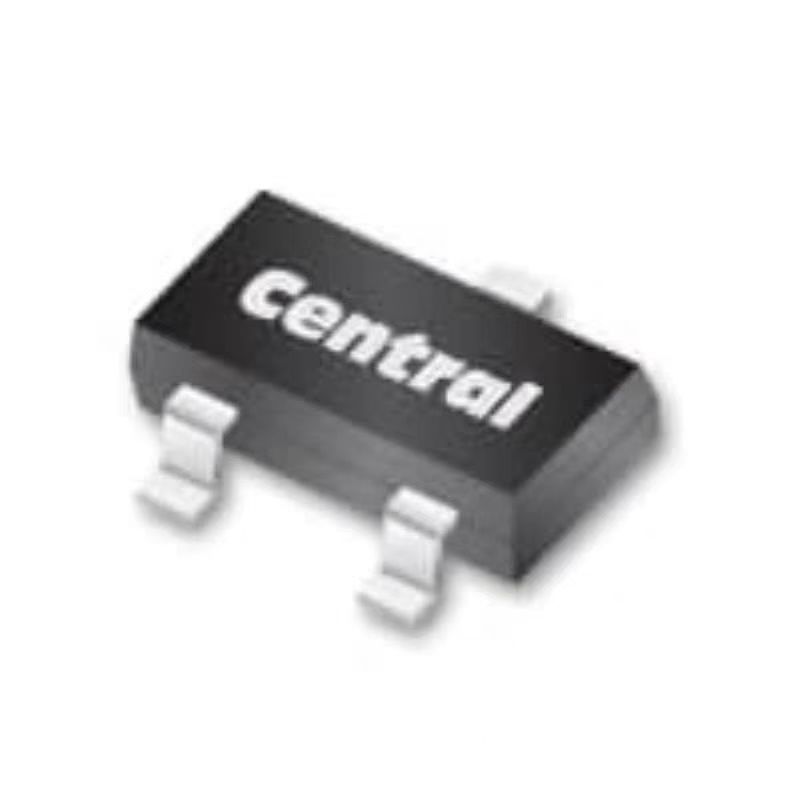

CMPT5551TR	Central Semiconductor	350mW	600mA	160V	SOT-23
PMBT5550,215	NXP Semiconductors	250mW	300mA	140V	SOT-23
