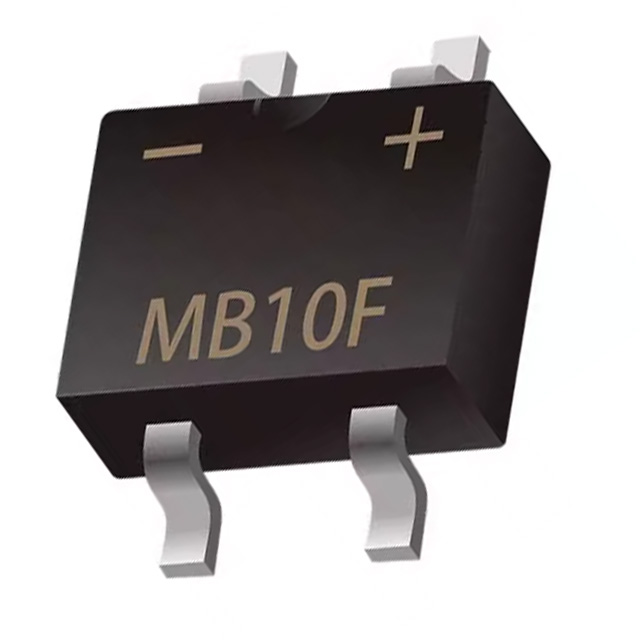

MB10F Bridge Rectifier | Datasheet, Price & Specifications

Explore the MB10F bridge rectifier for efficient power conversion and rectification. Find detailed information on the MB10F chip, MB10F circuit diagram, and MB10F datasheet to understand its working principle, output voltage, and pinout. Learn how to test MB10F for applications such as LED drivers, or find the MB10F equivalent and pricing options. Access the Reference manual for a comprehensive guide to its specifications.

Brands: SMC Diode Solutions

Download: MB10F Datasheet PDF

Price: inquiry

In Stock: 55,144

Voltage-PeakReverse(Max): 1 kV

Current-AverageRectified(Io): 500 mA

Voltage-Forward(Vf)(Max)@If: 1.1 V @ 800 mA

Package: 4-SMD, Gull Wing

MB10F diode

At Kasuo Electronics Technology, we provide the MB10F diode, a high-performance bridge rectifier that is ideal for various power conversion applications. The MB10F offers reliable performance in AC to DC rectification, making it perfect for use in power supplies, industrial equipment, and consumer electronics.

Key Features:

Current Rating: 10A continuous current capacity

Voltage Rating: Reverse voltage of 1000V, ensuring stable operation even under high voltage conditions

Package Type: Features a compact and durable package for easy integration into circuit designs

Reverse Recovery Time: Fast switching time for efficient operation

Low Forward Voltage Drop: Ensures low power losses during operation, contributing to higher energy efficiency

High Efficiency: Ideal for use in power electronics where minimal energy wastage is critical

Before shipping, all MB10F diodes undergo stringent quality control testing to ensure optimal performance and reliability. We also provide detailed test reports with each order, giving you full confidence in the quality of the components you receive. Whether you need a single unit or bulk quantities, Kasuo Electronics Technology is dedicated to delivering the best in both product quality and service.

MB10F Pinout

The MB10F is a dual Schottky barrier rectifier diode. This table illustrates the pinout configuration of the MB10F, detailing the anode and cathode connections for proper integration into your circuit.

Pin Number	Pin Description	Function
Pin 1	Anode (A)	The positive side of the diode connection
Pin 2	Cathode (K)	The negative side of the diode connection
Pin 3	Anode (A)	The positive side of the diode connection
Pin 4	Cathode (K)	The negative side of the diode connection

Understanding the MB10F pinout is essential for proper circuit design and ensures the diode functions as intended, providing efficient power rectification with minimal voltage loss.

MB10F Equivalent

Part Number	Manufacturer	Maximum Voltage	Maximum Current	Forward Voltage	Package Type
MB10F	SMC Diode Solutions	100V	10A	0.45V	4-SMD

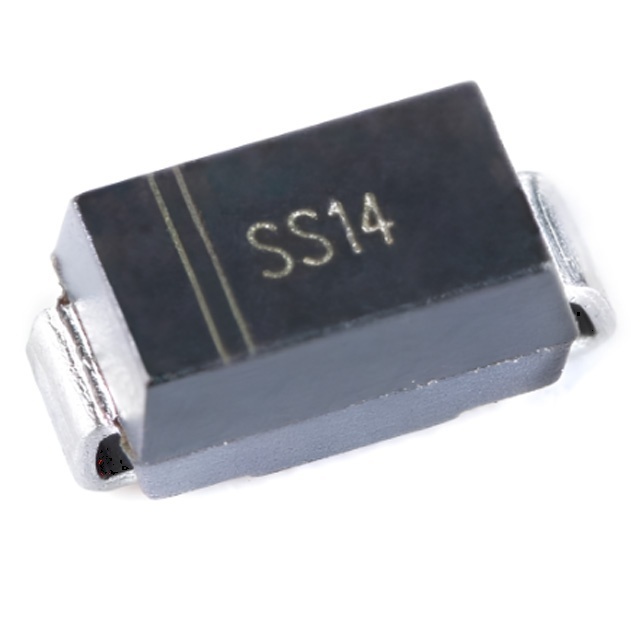

SS14	Diodes Incorporated	40V	1A	0.45V	4-SMD
k34	ON Semiconductor	40V	3A	0.45V	4-SMD

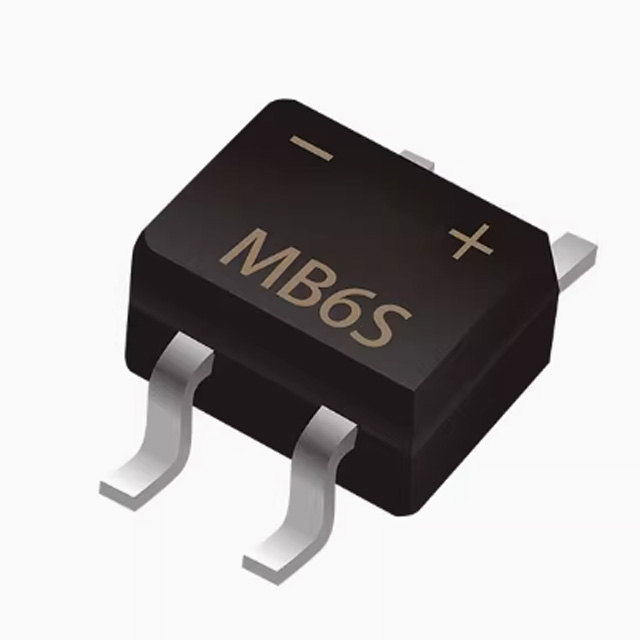

MB6S	SMC Diode Solutions	60V	6A	0.45V	4-SMD

Description:

The MB10F is a 4-SMD packaged Schottky barrier rectifier diode with a high current handling capacity of 10A and a voltage rating of 100V. It is widely used in power applications requiring low forward voltage drop and high efficiency.

The SS14 is offered in a similar package, but the SS14 has a lower current rating (1A), although there may be slight differences in certification or package standards.

The k34 and MB6S have similar forward voltage ratings but lower current or voltage handling, making them suitable for less demanding applications.
