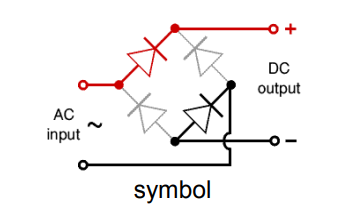

MB10F Circuit

MB10F is a rectifier bridge stack that is mostly used for power management, LED lighting, charging devices, etc.

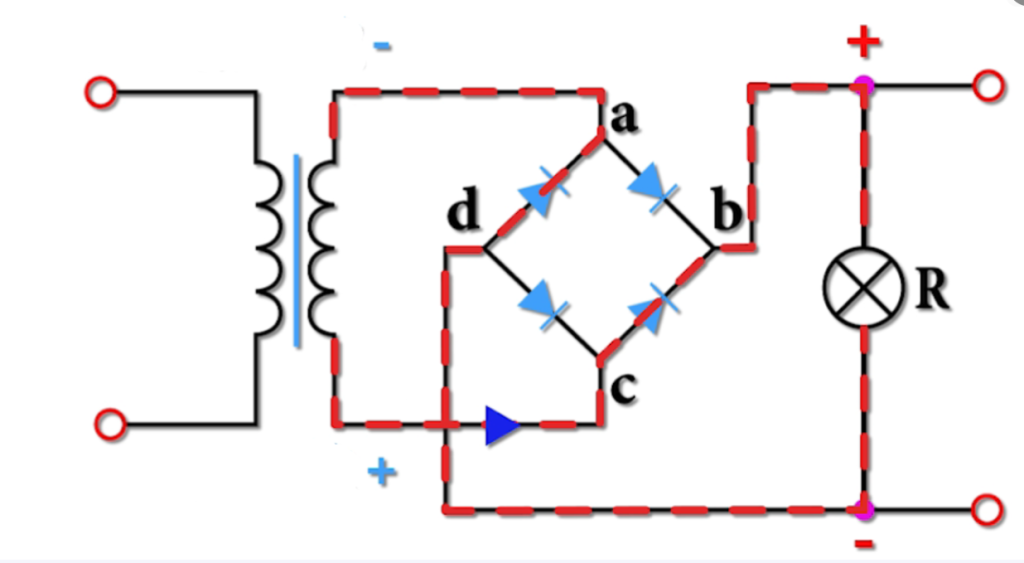

When the current flows from the upper left, the first one will pass through point a. When it reaches point a the current has two ways to go, to d or to b. But because the diode between ad is reversed, the current can’t flow to d but only to b. When it reaches point b the same way it can only flow to d. When it reaches point d, there are two lines, da and dc, but the potential at point a is higher than the potential at point d so the current can only flow to c. Same reason for the , when the current flows from the lower left the flow is c->b->d-

The waveform can be seen through the waveform graph after the rectification of the negative half-cycle of the waveform are changed to a positive value, the current shows a single direction of the wave-like output, but our daily life in the use of the current is a flat DC, so if we need to use this rectified current, we also need to filter before use.
