KBPC3510 | Bridge Rectifier | Datasheet | Pinout
- Brands: Yangzhou Yangjie Electronic Technology Co.,Ltd
- Download: KBPC3510 Datasheet PDF
- Price: inquiry
- In Stock: 2
- Voltage-PeakReverse(Max): 1 kV
- Current-AverageRectified(Io): 35 A
- Voltage-Forward(Vf)(Max)@If: 1.1 V @ 17.5 A
- Package: 4-Square, KBPC
FREE delivery for orders over HK$250.00
Quick response, quick quotaton
Flash shipment,no worries after sales
Original channel,guarantee of the authentic products
Bridge Rectifier KBPC3510
KBPC3510 Pinout

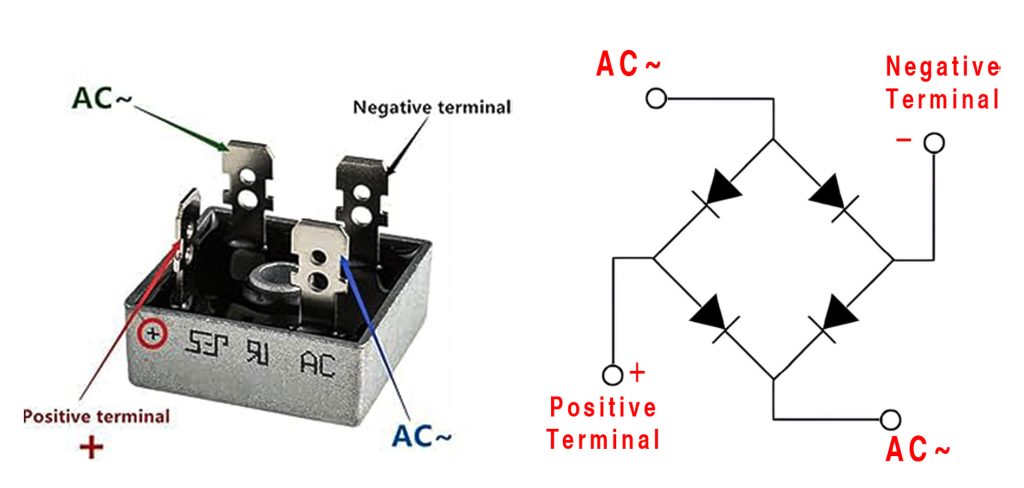

KBPC3510 Pinout Diagram
The KBPC3510 is a 35A bridge rectifier commonly used in AC to DC power conversion. It features four pins arranged to connect to an AC input and provide a rectified DC output. This component is designed to handle high current and is typically used in power supplies, inverters, and various other industrial applications.
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | AC~ | Input AC voltage (alternating current) |
| 2 | AC~ | Input AC voltage (alternating current) |
| 3 | Positive (+) | Output positive terminal, provides DC positive voltage |
| 4 | Negative (-) | Output negative terminal, provides DC negative voltage |
The four pins of the KBPC3510 are clearly marked for easy connection. The AC inputs are used for the alternating current input, while the positive and negative output terminals provide the rectified direct current. This simple yet efficient design makes the KBPC3510 a reliable choice for high-power applications.
