IRFP460 | Datasheet, Equivalent, Pinout, Amplifier Circuit STMicroelectronics

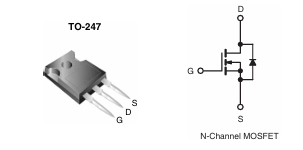

IRFP460 Pinout

IRFP460 Picture

The IRFP460 is a high-performance N-channel MOSFET transistor used by electronic power engineers and is widely used in high-power electronic devices, such as switching power supply circuits, inverter circuits, and motor driver circuits. The specific parameters of IRFP460d1 are shown as follows: The maximum voltage of IRFP460D1 is 500V, which can meet the requirements of most high-voltage circuit design; The maximum sustained current that can be tolerated is 20A (note that this will decrease with temperature, at 100 degrees Celsius, only 13A), which is suitable for most circuits. In the process of use, it should be noted that a long time of high-power work will cause the transistor to continue to heat resulting in power reduction, in order to maintain a long time to work in the best state, in use need to pay special attention to heat dissipation problems (such as external heat sink or silicone grease); The on-resistance of the IRFP460 is 0.27 Ohm, which can effectively reduce additional power loss and improve the efficiency of the circuit system. The package adopts the form of TO-247AC-3, the advantage is that the heat dissipation is more convenient, the disadvantage is that the space is larger.
Pins are defined as follows:

IRFP460 Equivalent

IRFP460 Replaceable Chip Table

TSA28N50M Picture

FDA28N50F Picture

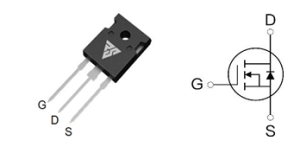

RS30N50W Picture

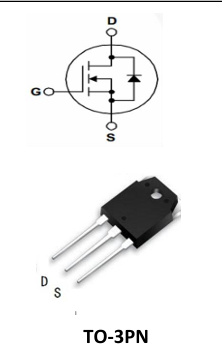

MD24N50 Picture

SVF23N50PN Picture
