IRFP260 vs irfp250 datasheet | price | pdf

IRFP260 Pinout

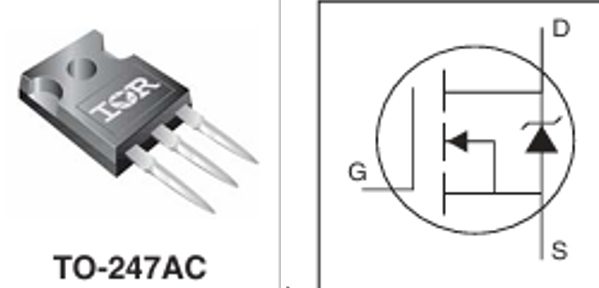

irfp260 Picture

Pins are defined as follows:

IRFP260 Equivalent

irfp260 is a very good performance N-channel MOSFET tube, especially for the current and voltage have great requirements for the circuit (such as high-voltage power supply circuit); generally used TO-247 package, the package size is larger will take up more space PCB, but at the same time a larger size will bring good heat dissipation (can be coated with more thermally conductive silicone grease, can be connected to a larger heat sink), very suitable for use in high-power applications; maximum withstand voltage value of 200V can be used in most circuit designs; on-resistance of 40 milliohms, especially small on-resistance means small Heat sink), very suitable for use in high-power application circuits; maximum withstand voltage value of 200V can be used in most of the circuit design; on-resistance of 40 milliohms, especially small on-resistance means small on-loss, can have a higher energy efficiency; can withstand a continuous current of up to 50A; and has a very small on-voltage 2V, can be relatively easy to conduction. When using, need to pay attention to heat dissipation, do not be too large on voltage (maximum support 20V, more than this value will be breakdown). The main application scenarios are, high-power switching circuits, audio amplifier circuits and other circuits.
Irfp260 Replaceable Chip Table

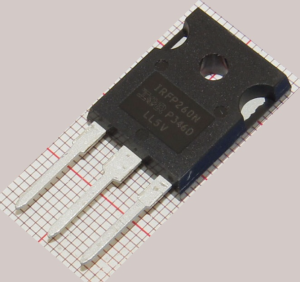

IRFP260NPBF Picture

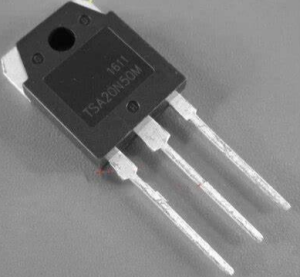

TSA50N20M Picture

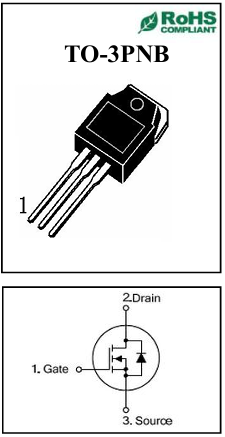

OSH50N20 Picture

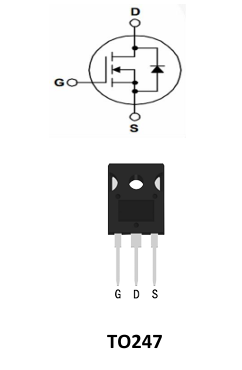

MD50N20 Picture

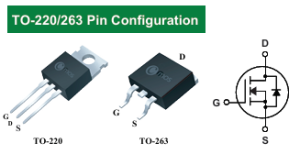

CMB50N20 Picture
