IR2156S Datasheet, Price, Pinout, Application

IR2156S Reference manual offers detailed information on IR2156S power supply, pinout, and schematic. Explore applications such as ballast control IC and SMPS design. Find pricing, IR2156S equivalent details, and more for your projects.

Brands: Infineon Technologies

Download: IR2156S Datasheet PDF

Package: 14-SOIC (0.154, 3.90mm Width)

Series: -

In Stock: 18,614

Type: Ballast Controller

Frequency: 36kHz ~ 44kHz

Voltage-Supply: 10.5V ~ 16.5V

Current-Supply: 10 mA

Price: inquiry

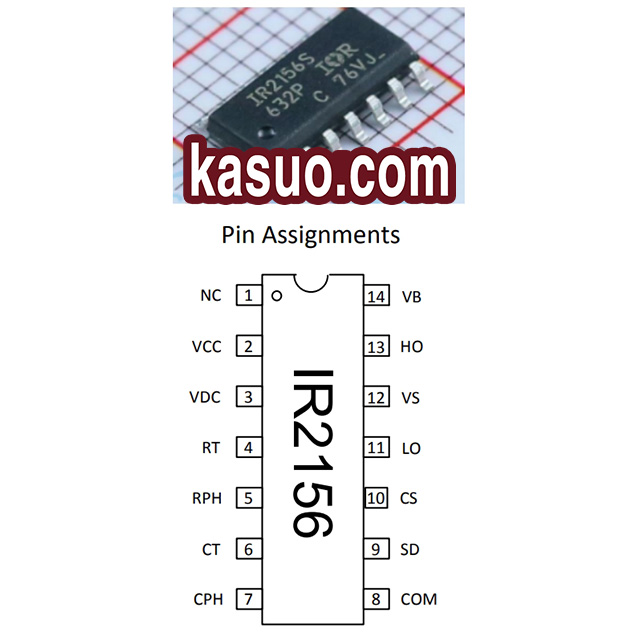

IR2156S Pinout Equivalent

1：Overview of the IR2156S ：

The IR2156S is a high-performance control chip specifically designed for fluorescent lamp electronic ballasts. It integrates control functions for preheating, starting, and normal operation, featuring high power factor, low harmonic distortion, and reliable lamp fault protection. This enhances the efficiency and stability of fluorescent lamps.

2：IR2156S Important pin function definition:

Pin	Symbol	Description
1	NC	No Connect
2	VCC	Logic & Low-Side Gate Driver Supply
3	VDC	IC Start-up and DC Bus Sensing Input
4	RT	Minimum Frequency Timing Resistor
5	RPH	Preheat Frequency Timing Resistor
6	CT	Oscillator Timing Capacitor
7	CPH	Preheat Timing Capacitor
8	COM	IC Power & Signal Ground
9	SD	Shutdown Input
10	CS	Current Sensing Input
11	LO	Low-Side Gate Driver Output
12	VS	High-Side Floating Return
13	HO	High-Side Gate Driver Output
14	VB	High-Side Gate Driver Floating Supply

3：Alternative model recommendation

L6574：STMicroelectronics offers products for fluorescent lamp electronic ballasts. They support various operating modes, enabling preheating, starting, and steady-state operation, with features like overcurrent protection and overvoltage protection to enhance system reliability. Additionally, they allow flexible adjustment of operating frequency and duty cycle.

UBA2014：NXP’s chips have high integration, featuring internal components such as oscillators, drivers, and protection circuits. They support dimming functionality, enabling brightness adjustment for fluorescent lights, making them suitable for various fluorescent lighting applications.

FAN7529：Fairchild Semiconductor’s products feature comprehensive protection functions, such as overcurrent protection, overvoltage protection, and undervoltage protection. They enable rapid startup and stable lamp current control, making them suitable for designing electronic ballasts for fluorescent lamps.

NCP1014：Onsemi’s chips, which integrate power switches and controllers, feature low standby power consumption and high efficiency. They can be used in fluorescent lamp electronic ballasts to provide stable power output and lamp drive control.
