ES1J | Diode Datasheet, SMD Diode, Equivalent, Price HY Electronic (Cayman) Limited
- Voltage-DCReverse(Vr)(Max): 600 V
- Current-AverageRectified(Io): 1A
- Voltage-Forward(Vf)(Max)@If: 1.7 V @ 1 A
- Package: DO-214AC, SMA

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products
ES1J Schottky Diode
At Kasuo Electronics, we are committed to providing high-quality electronic components, and our ES1J diode is no exception. Designed for effective protection and performance, the ES1J is an essential component for safeguarding your circuits against voltage spikes.
Key Features of ES1J Diode:
Type: Schottky Rectifier
Forward Voltage: 0.45V (max)
Reverse Current: 5 µA (max at 25°C)
Reverse Voltage: 100V
Package Type: DO-214AC
Operating Temperature Range: -55°C to +125°C
The ES1J diode is ideal for applications such as power supplies, battery-operated devices, and protection circuits due to its low forward voltage and excellent reverse leakage characteristics.
Quality Assurance
At Kasuo Electronics, we ensure that all our components undergo rigorous quality control checks before shipment. Each ES1J diode is tested to ensure it meets the highest standards of reliability and performance. A detailed test report is available upon request, providing complete transparency about the product’s performance.
Choose Kasuo Electronics for trusted, high-quality components tailored to meet your needs.
ES1J Pinout
The ES1J diode pin assignment configuration details the connection of the cathode and anode pins in the component.
Pin Number | Pin Name | Description |
---|---|---|
1 | Cathode | The negative side of the diode, typically marked by a stripe or line. |
2 | Anode | The positive side of the diode. It connects to the voltage source or circuit. |
This pinout layout ensures the proper orientation and connection of the ES1J diode in electronic circuits. Correctly identifying the cathode and anode is crucial for the diode’s functionality in rectification, protection, and signal processing applications.
ES1J Diode Equivalent
This is a model replacement table for the ES1J, they are both rectifier diodes and both convert AC to DC. They are both unidirectional, so they can both have protection circuitry
Picture | Name | Makers | Reverse Recovery Time | Maximum Current | Maximum Voltage | Package Type |
---|---|---|---|---|---|---|
![]() |

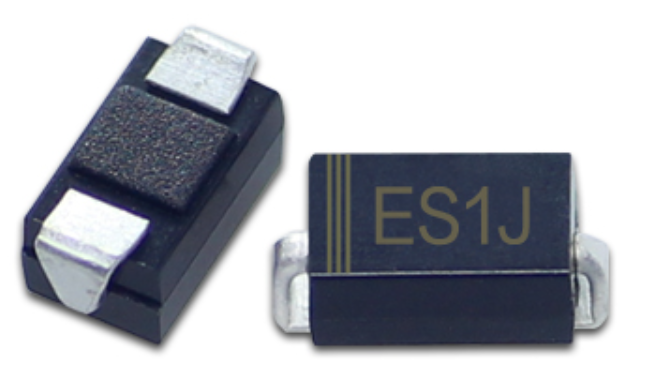

ES1J | Diodes Incorporated | 50ns | 1A | 600V | DO-214AC |
![]() |
1N5404 | ON Semiconductor | 2.5µs | 3A | 400V | DO-201AD |
![]() |

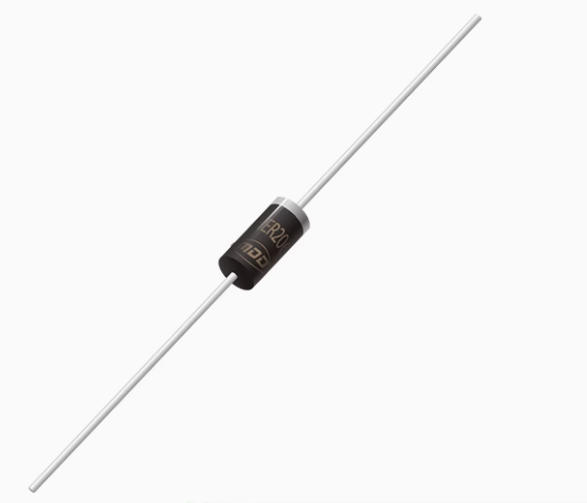

HER206 | Good-Ark Electronics | 500ns | 2A | 600V | DO-15 |
![]() |

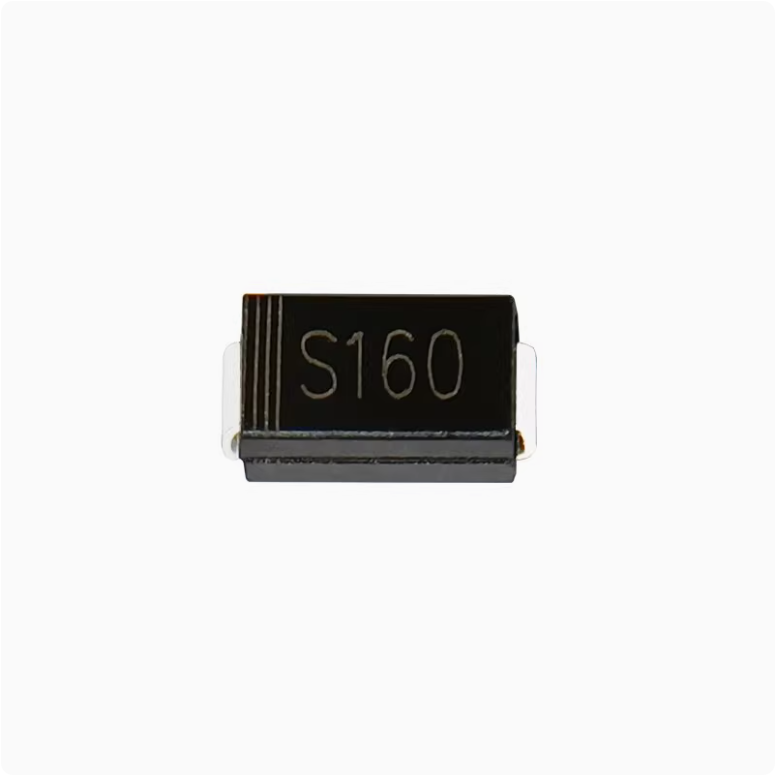

MURS160 | STMicroelectronics | 35ns | 1A | 600V | SMA |
![]() |

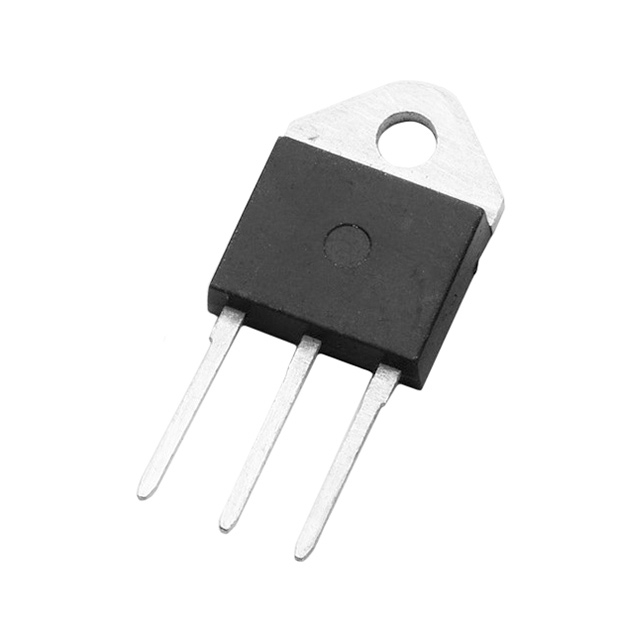

P600J | ON Semiconductor | 2.0µs | 6A | 600V | TO-220 |
![]() |
US1J | Diodes Incorporated | 75ns | 1A | 600V | SMA |
Note:
1. Replace with 1N5404, his reverse voltage is smaller than ES1J, if the original circuit voltage exceeds 400V, it will burn through 1N5404.
2. Replace with HER206, if the circuit requires high reverse recovery time, he is not very suitable.
3. with MURS160 replacement, the original circuit current will be too large overcurrent damage, but also should consider the MUR160 heat dissipation. 4. with P600 replacement, if the circuit voltage exceeds 400V, it will burn through the 1N5404.
4. Replace with P600, if the circuit operates at a high frequency for high reverse recovery time requirements, then he is not suitable.
5. Replacement with US1J, his parameters and packages are similar to ES1J, can be directly replaced.
