DS3231M+ datasheet, price, Arduino, RTC
- Brands: Analog Devices Inc./Maxim Integrated
- Download: DS3231M+ Datasheet PDF
- Price: inquiry
- In Stock: 12,252
- Type: Clock/Calendar
- Date Format: YY-MM-DD-dd
- Interface: I²C, 2-Wire Serial
- Package: 16-SOIC (0.295, 7.50mm Width)
DS3231M Pinout Equivalent
1:Overview of The DS3231M:
DS3231M is a high-precision I²C real-time clock (RTC) chip launched by Analog Devices (formerly Maxim), integrating MEMS resonator and temperature compensation function, suitable for industrial, consumer electronics and other scenarios that require accurate timing.
±5ppm accuracy (-45°C to +85°C), daily error is only ±0.432 seconds, supports leap year compensation until 2100. Dual power supply input (VCC main power supply + VBAT backup battery). Automatically switch to the battery when the main power supply is cut off to maintain timing.
2:DS3231M Important pin function definition:
Pin Number | Pin Name | Description |
---|---|---|
Pin1 | 32kHz | 32.768kHz frequency output pin, open-drain output, requires an external pull-up resistor. |
Pin2 | VCC | Main power input, with an operating voltage range of 2.3V – 5.5V. |
Pin3 | INT/SQW | This pin has two working modes. When used as an interrupt output pin (INT), it is active low and is used for interrupt events such as alarm triggers. When used as a square wave output pin (SQW), it can output square wave signals of 1Hz, 4kHz, 8kHz or 32kHz. |
Pin4 | RST | RST pin, active low, used to reset the internal registers of the chip. |
Pin5 | GND | Grounding pin. |
Pin6 | VBAT | VBAT pin is the backup battery input pin. When the main power supply VCC is powered off, the battery connected to this pin supplies power to the chip to maintain clock timing. |
Pin7 | SDA | Data pin of the I²C bus for data transmission with the microcontroller. |
Pin8 | SCL | The clock pin of the I²C bus provides a clock signal for I²C communication. |
3:Alternative model recommendation:
DS1307:Classic low-cost RTC, I²C interface, without temperature compensation, accuracy ±20ppm (0°C~70°C).Low cost and no external crystal oscillator is needed (built-in 32.768kHz crystal oscillator).Consumer electronics with low requirements for time accuracy (such as electronic clocks and small household appliances).
PCF85263AT/AJ : I²C interface RTC, without temperature compensation, accuracy ±1min / month (25°C). Functions: dual alarms, programmable square wave (1Hz~4096Hz), 64-byte RAM, power failure detection.Support wide voltage (1.1V – 5.5V) and low power consumption (standby current < 0.1μA).
MCP79410: MCP79410 is a low-cost real-time clock (RTC) chiplaunched by Microchip. It integrates a clock/calendar, dual alarms, 64 bytes of SRAM, 1KB of EEPROM and battery switching function. It supports I²C/SPI dual interfaces and is suitable for scenarios that do not require high precision but pay attention to cost and integration.
RX-8025: RX-8025 is a high-precision I²C real-time clock chip launched by EPSON. It has a temperature-compensated crystal oscillator (DTCXO/TCXO) built-in. It supports a wide voltage range and low power consumption. It is widely used in scenarios such as electricity meters, industrial control, and the Internet of Things.
More Like This
Also Add to Cart

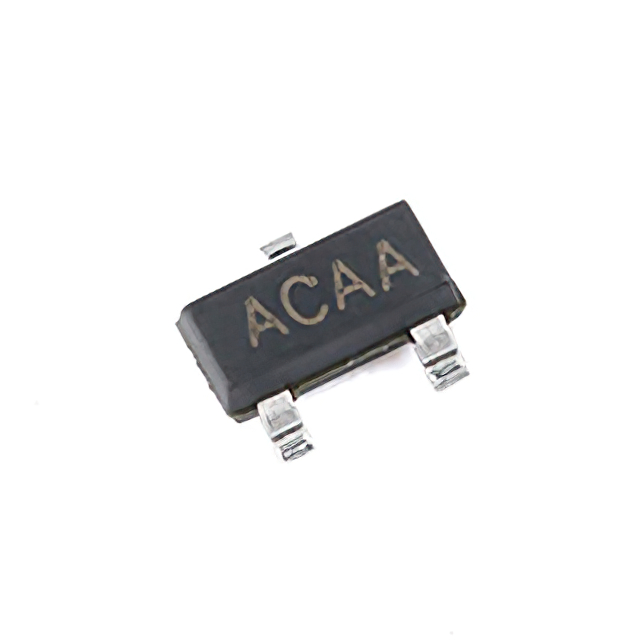

MAX809T
UMW

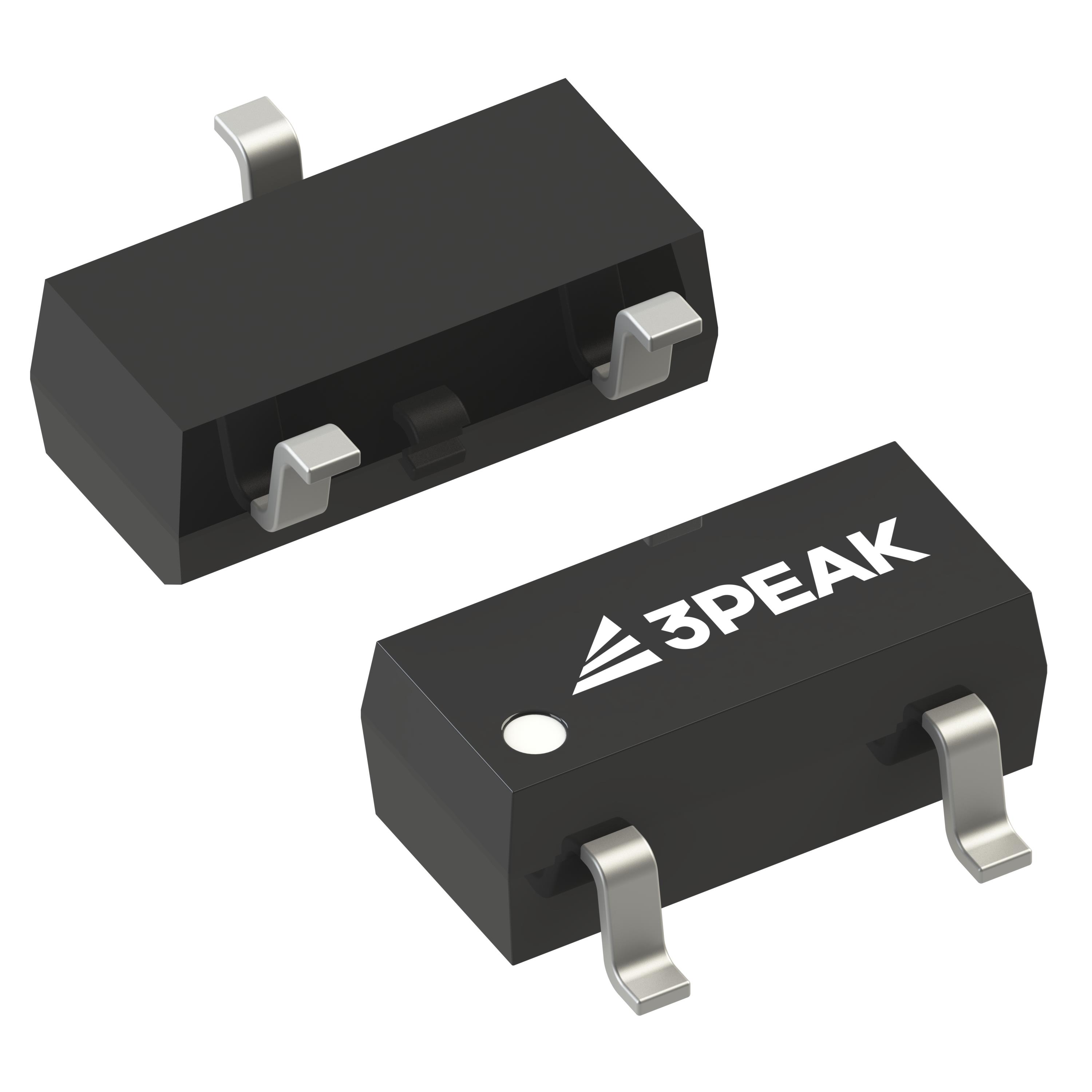

TPV6823S-TR
3PEAK
TPV803S-3STR
3PEAK
MAX6896AALT+T
Analog Devices Inc./Maxim Integrated

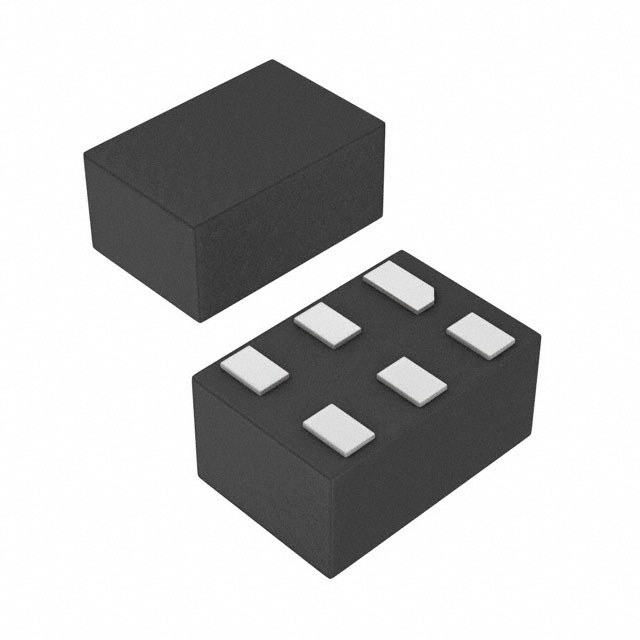

MAX20480DATEA/VY+T
Analog Devices Inc./Maxim Integrated
TPV706SL1-SR
3PEAK

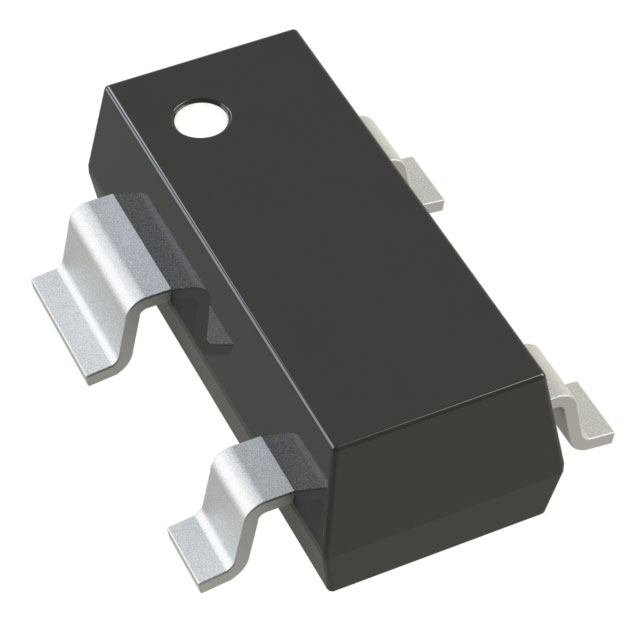

UM805RE
