BU406 Transistor | Datasheet | Pinout | Equivalent STMicroelectronics

The BU406transistor is ideal for various applications, including humidifier circuit diagrams and cinematronics. Find the pinout, equivalent, and replacement details in the Reference manual. Also, explore the price and datasheet for complete technical information and compatibility.

Brands: STMicroelectronics

Download: BU406 Datasheet PDF

Package: TO-220-3

Series: -

In Stock: 24,853

Transistor Type: NPN

Current-Collector(Ic)(Max): 7 A

Voltage-Collector Emitter Breakdown (Max): 200 V

Vce Saturation(Max)@IbIc: 1V @ 500mA, 5A

Price: inquiry

BU406 Pinout

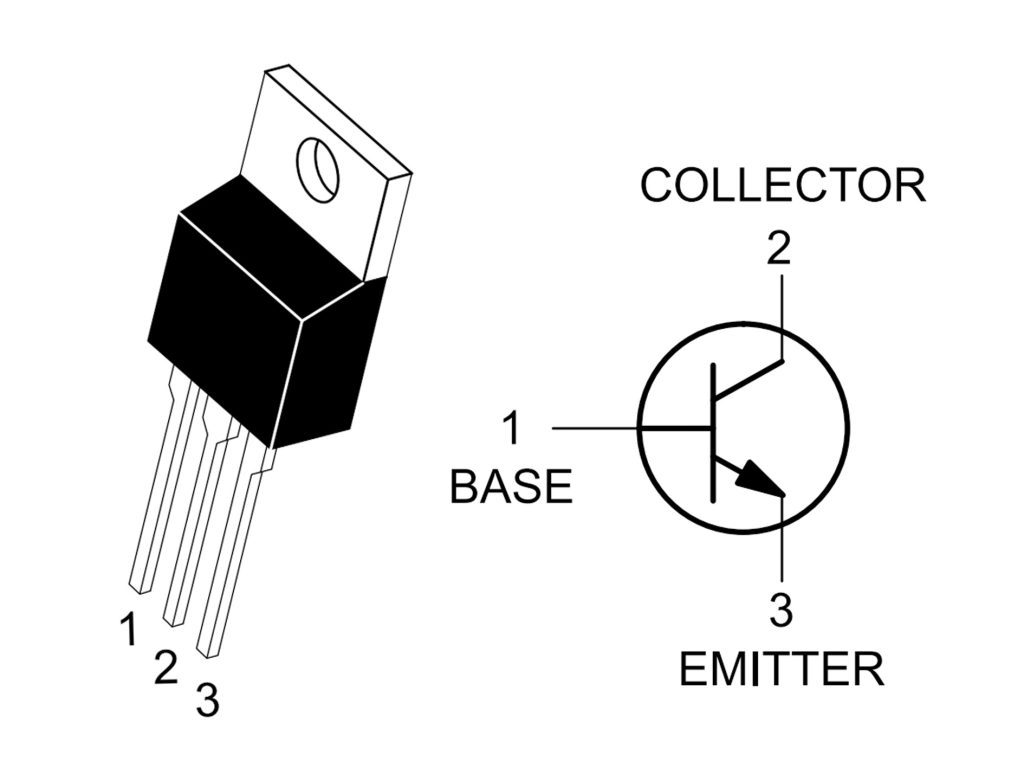

BU406 Pinout Diagram

The BU406 is a power transistor commonly used in various electronic applications. Below is the pinout table for the BU406, detailing the function of each pin on the transistor to help with proper identification and connection in circuits.

Pin Number	Pin Name	Description
1	Base	The base terminal, used to control the transistor’s operation (turning it on or off).
2	Collector	The collector terminal, where current flows from the transistor to the load.
3	Emitter	The emitter terminal, where current exits the transistor.

The BU406 transistor is designed to handle significant power and can be used in a variety of applications, from amplifiers to power supplies. Understanding its pinout is essential for correctly utilizing the transistor in electronic circuits.
