BTS7960B Arduino | Datasheet & Motor Driver

Explore the BTS7960B motor driver, ideal for Arduino projects. Access the Reference Manual for in-depth details, pinout, schematic, and connection guide. This 43A H-Bridge driver is perfect for controlling DC motors. Find Arduino code, examples, and library to enhance your project’s efficiency.

Brands: Infineon Technologies

Download: BTS7960B Datasheet PDF

Price: inquiry

In Stock: 5,793

Output Configuration: Half Bridge

Applications: DC Motors, General Purpose

Interface: Logic

Package: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA

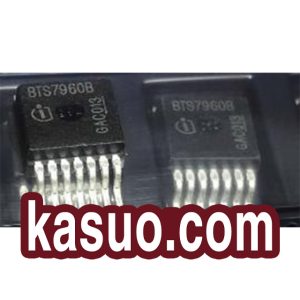

BTS7960B Pinout Equivalent

1：Overview of The BTS7960B ：

BTS7960B is a high-power half-bridge motor driver chip launched by Infineon. It is specially designed for high-current DC motors. It adopts TO-263-7 surface mount packaging. It integrates P-channel high-side MOSFET, N-channel low-side MOSFET and driver IC to form a fully integrated half-bridge structure. Its wide voltage input of 6-27V is suitable for industrial power supplies and lithium batteries. The peak current of 43A (continuous current requires heat dissipation) far exceeds traditional solutions such as L298N. It is suitable for high-load scenarios such as robots, smart cars, and industrial equipment. The IN1/IN2 pins control the forward and reverse rotation of the motor2.

2：BTS7960B Important pin function definition:

Pin Number	Pin Name	Description
Pin1	GND	Ground wire (control circuit and power ground).
Pin2	IN	Control signal: – When IN = 1 and INH = 1, the high-side MOSFET is turned on, and OUT outputs a high level; – When IN = 0 and INH = 1, the low-side MOSFET is turned on, and OUT outputs a low level.
Pin3	INH	Enable signal: – When INH = 1, the chip is activated; – When INH = 0, it enters sleep mode (low power consumption).
Pin4	OUT	Half-bridge power output, connected to one end of the motor.
Pin5	SR	Switching rate adjustment: Connect an external resistor to GND. The larger the resistance, the slower the turn-on/turn-off slope of the MOS transistor, reducing EMI.
Pin6	IS	Current detection and fault diagnosis.
Pin7	VS	Power supply positive electrode: Connect to the 6-27V motor power supply (a circuit needs to be formed with GND).

3：Alternative model recommendation:

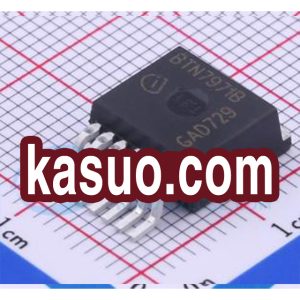

BTN7971B：BTN7971B is a high-power half-bridge motor drive chip launched by Infineon. As an upgraded version of high-power half-bridge motor drive chip, the upgrade of BTS7960B, it adopts TO-263-7 surface mount package, integrates P/N channel MOSFET and drive circuit, supports a wide voltage input of 6-28V, has a continuous current of 43A (peak 86A), and has a conduction resistance of only 7mΩ (high side)/9mΩ (low side)

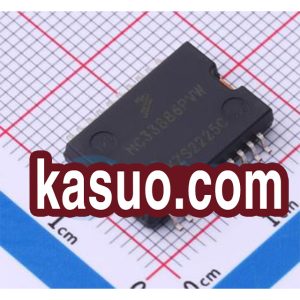

MC33886:The MC33886 is a single-channel H-bridge motor driver chip introduced by NXP (formerly Freescale), designed specifically for small to medium power DC motors. It uses a TO-220-7 package and supports a wide input voltage range of 5 to 28 V. The chip provides a continuous output current of 5.2A with a peak current of 7A. It includes built-in low on-resistance MOSFETs (120mΩ) and freewheeling diodes, eliminating the need for external components.

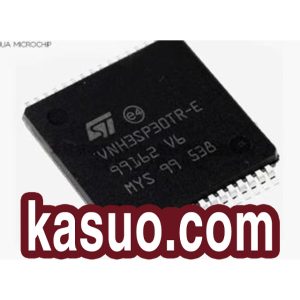

VNH3SP30: The VNH3SP30 is a high-integration H-bridge motor driver chip produced by STMicroelectronics (ST). It features MultiPowerSO-30 packaging, incorporating dual high-side drivers (HSD) and dual low-side MOSFETs. It supports a wide input voltage range of 5.5 to 36 V and can deliver a continuous current of 30 A (peak 60 A) with an on-resistance as low as 45 mΩ, making it suitable for driving high-current DC motors.
