- Voltage-DCReverse(Vr)(Max): 70 V
- Current-AverageRectified(Io)(perDiode): 200mA
- Voltage-Forward(Vf)(Max)@If: 1.25 V @ 150 mA
- Package: -

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products
{1120} BAV99 Series connected SMD diode pair
BAV99 Equivalent Diode
bav99 diode Picture
The role of the semiconductor diode placed in the circuit is equivalent to a switch, when the circuit allows current flow, the cut-off is equivalent to the circuit is disconnected does not allow current flow, commonly used models are generally 1N4148; basically all diodes can be used as an ordinary electronic switch (but ordinary diodes can not be long-term rapid switching, so the switching diode on the application of the birth of the diode), the switching diode for the switching diode. For the switching diode this class of devices is the most important performance indicators in the switching performance of high-frequency conditions (that is, in the case of long-term high-speed switching or still can be used).
BAV99 Parameters:
Reverse breakdown voltage: VR = 70V.
Rated rectification current: 200ma (refers to the average current value under long-term stable operation);
Maximum inrush current: 2.0A (the maximum current allowed to flow, more than will breakdown diode);
Power consumption: 225mw (the diode will heat up if there is current flowing through it, if the power consumption is maintained for a long time, it will be possible to burn out the diode).
Alternative device selection:
Name | Type | VR | IF | I(FSM) | PD | Package |
---|---|---|---|---|---|---|
BAV70 | SWITCHING DIODE | 70V | 200MA | 500MA | 225MW | SOT-23 |
BAW56 | SWITCHING DIODE | 70V | 200MA | 500MA | 225MW | SOT-23 |
SBAW56LT3G | SWITCHING DIODE | 70V | 200MA | 500MA | 225MW | SOT-23 |
HBAV99W7F | SWITCHING DIODE | 70V | 200MA | 2A | 225MW | SOT-323 |
S-LBAW56LT1G | SWITCHING DIODE | 70V | 200MA | 500MA | 225MW | SOT-323 |

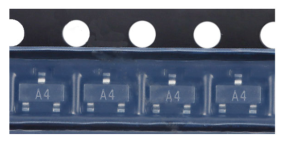

BAV70 Picture
BAW56 Picture
SBAW56LT3G Picture

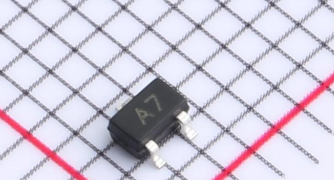

HBAV99W7F Picture
S-LBAW56LT1G Picture
