BAT54
BAT54

BAT54 | Schottky Diode Datasheet, Specifications, Equivalent, Price Fairchild Semiconductor

The BAT54 is a versatile Schottky diode, commonly used in various electronic applications. For complete information on its specifications, pinout, and equivalents, refer to the Reference manual. Available in several variants, including BAT54S and BAT54A, this diode is produced by Vishay, Nexperia, and other manufacturers. Explore its uses, including current handling and voltage drop, to ensure optimal performance in your projects.
Brands: Fairchild Semiconductor
Download: BAT54 Datasheet PDF
Price: inquiry
In Stock: -
Voltage-DCReverse(Vr)(Max): 30 V
Current-AverageRectified(Io): 200mA
Voltage-Forward(Vf)(Max)@If: 800 mV @ 100 mA

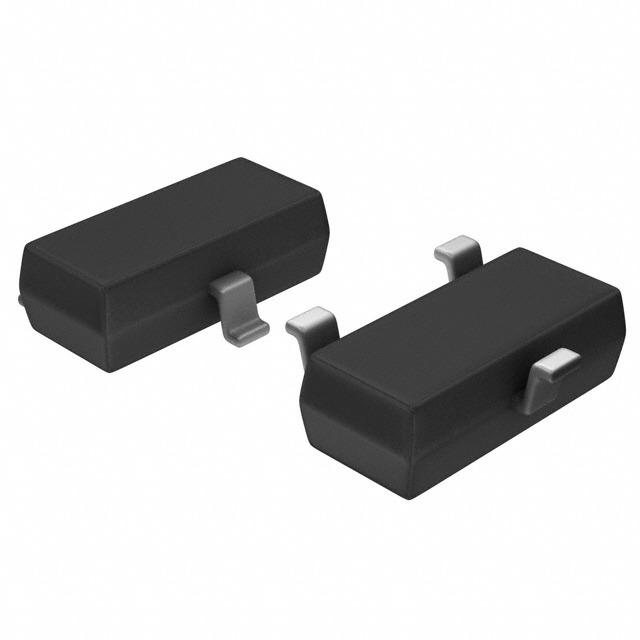

Package: TO-236-3, SC-59, SOT-23-3
send your inquiry

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products
