Power Converters: Types, Functions, Working and Applications

Sometimes, you might need more voltage for an application or change DC to AC, but you have no idea where to start. Several types of electrical devices can perform these activities, and a power converter is one of them. A power converter is essential for handling such conversion types to ensure the best performance for a device.

We want to look at power converters in more detail, including what they are, where to buy them, how they work, and so much more. In the end, you should have a better understanding of why power converters exist.

What is a Power Converter?

A power converter is a circuit or device that transforms one electrical energy form into another. It can convert alternating current (AC) to direct current (DC) or maintain the same form but change the voltage, frequency, and current to suit a particular application.

Power converters are essential for adapting electrical power from different sources to your needs. For example, specialized machinery that needs a specific current range could use this device.

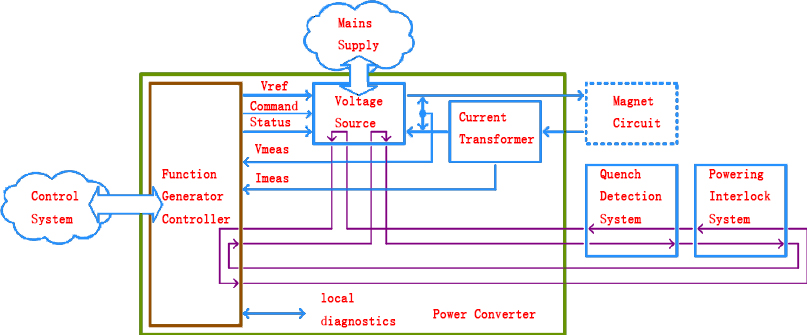

Components of a Power Converter

Power converters are made of different types of electrical components vital for its operation. The components include diodes, transistors, and thyristors as the power semiconductor devices and inductors, transformers, and capacitors as the passive components. You also get the power converter for cars having control circuits as well.

Power Semiconductor Devices

The diodes in the RV power converter are for rectification when the unit is converting AC to DC. They also ensure the current flow is in one direction.

The transistors, on the other hand, act as switches. Their job is to control the flow of power. It is the same for the thyristor only that it is meant for high-power applications.

Passive Components

The inductors in the circuit store energy in a magnetic field. Their job is to filter the power output in addition to energy storage.

The transformer is vital for stepping up or down the voltage. It is also essential for providing isolation between circuits.

Capacitors are key in storing energy in an electric field. Their job is to filter and smoothen voltage before it is accessed at the output.

Control Circuits

These are vital for the proper performance of the camper power converter. For example, the control logic monitors the input power, motor operation, desired output, and controls of the switching components.

You also get protection circuits vital for safeguarding the converter and other equipment from damage.

The type of control circuits will vary from one power converter to another, depending on its rated applications and performance.

Functions of a Power Converter

Whether it is a single to three-phase power converter or any other type of configuration, they all tend to have similar functions.

The most notable function is voltage transformation. This means that the car power converter can increase or decrease the voltage level depending on your needs or system.

In addition, the power converter can do AC to DC conversion and vice versa. This is critical as there are times you may need to use AC and when DC is more important.

Other than voltage transformation, current transformation is also possible. In this case, the power converter can change the current levels, ensuring efficient power for device operation.

The power converter can also convert AC power frequency. This might be important for industrial machinery that needs to work with AC power at a certain frequency.

Power converters are usually built with energy efficiency in mind. They help minimize potential energy losses during conversion, improving system efficiency overall.

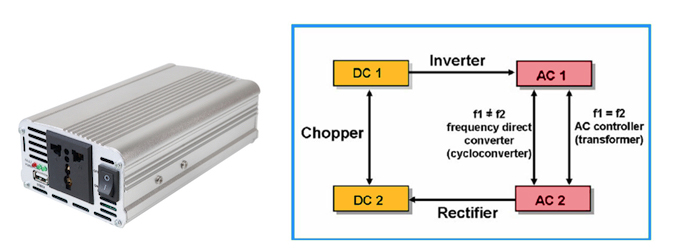

How Power Converters Work

The power converters have three main mechanisms that describe how they work: switching, Pulse Width Modulation, and filtering.

During switching, power converters use semiconductor switches, such as transistors, to rapidly turn on and off to control power flow. This switching mechanism is controlled by Pulse Width Modulation (PWM). This activity determines the ratio at which the switches are on and off, thus regulating the output current or voltage.

As for filtering, the power converters come with inductive and capacitive elements for filtering the output, which has ripples due to the switching operation. This leaves you with a smooth output voltage or current.

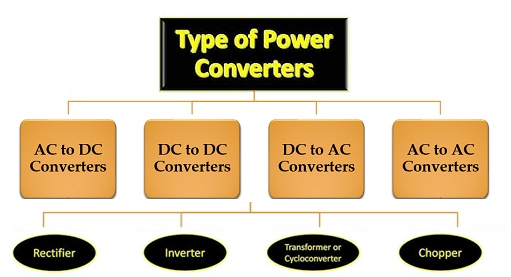

Types of Power Converters

You will come across different types of power converters in the market. The idea is to ensure you always get the right type for the application. Below are the main types of power converters you can get in the market.

AC to DC Converters

This is also called a rectifier. Its job is to convert alternating current into direct current. Alternating current can reverse direction periodically, but some devices need stable current flowing in one direction and hence the conversion.

Filters are added to these converters to ensure a smoother DC output. The common filter used in this converter is the capacitor.

DC to AC Converters

This is also called an inverter. It is probably more common in the market than the rectifier. The inverter converts direct current into alternating current. This is common in applications with renewable energy systems since the source of power is DC, and you need AC to power most electronics in your home and electronics.

DC to DC Converters

In this case, the auto power converter will convert DC to DC but change the voltage level at the output. This is a vital process where the battery voltage does not match the voltage needed by the appliance. This transformation is what helps the device to work.

AC to AC Converters

This type of converter is designed to convert AC power to AC power but with a change in frequency, amplitude, and AC signal phase. Such converters are expected to be encountered in applications where the AC power needs to be modified.

Such converters are needed, for example, to control the AC motor speeds in UPSs, which need to regulate the power before it is delivered to sensitive equipment.

Applications of Power Converters

Because of their quality, power converters tend to have many applications. Here is a quick list of where they are most often used.

• Power suppliers and chargers
• Household appliances
• Lighting systems
• Battery charging and motor operation
• Torque vectoring in EVs
• Solar and wind power conversion systems etc.

How to Choose the Right Power Converter

Choosing the right power converter can save you a lot of trouble. It will work just as you want it to. Below are some tips for selecting the best power converter.

Identify Your Device’s Needs

It all comes down to the device you need to power and its specifications. These will determine the voltage compatibility, polarity, current considerations, and more.

The power converter’s output voltage should match your device’s voltage needs. The same goes for the current. It should be enough to power the device.

Converter Efficiency

The last thing you need is a converter, which can lead to significant energy losses during the conversion. Fortunately, most power converters are highly efficient, making finding one that suits your needs easy.

Safety Features

The power converter’s work should also include protecting the device and providing it with the right power. So, look at its protection features to see if it can serve you. For example, some models come with short-circuit protection and overload protection.

Working Environment

Before buying a power converter for an RV, you need to ensure it actually works for that environment. This is because sometimes you might expose it to dust or a lot of vibrations. It should then be built for such applications. Power converter manufacturers often recommend where best you can use their product. This allows you to choose the right power converter for the job.

Types of Converters

There are plenty of converters in the market. It is all about choosing the right one. Common examples include AC-DC, DC-AC, AC-AC, and DC-DC converters. Each is designed for specific applications. Identify which one you need first before buying so that it delivers on the power needs you have in mind.

Maintenance and Servicing

Whether it is a power converter for a vehicle or house, it might need a maintenance routine. It does not have to be complex. Most of the time, you only need to wipe it clean to keep it working correctly. In case you need to service it or it is not working, have a professional look at it to ensure proper servicing is done.

Power Converter vs. Transformer: Know the Difference

A power converter and a transformer both change the power form in various ways. It is worth noting that transformers are used to step up or down the AC voltage. You will come across them in power transmission lines or even in small form factors in your house appliances. The aim is to ensure the power supply operates within the range that the device needs.

Power converters can do what the transformer does, plus more. So, in addition to stepping up or down the AC power, they can also change AC to DC, DC to AC, AC to AC, and DC to DC. Depending on the choice of power converter, the voltage level, current level, and frequency of the current can be changed.

Troubleshooting Common Power Converter Issues

You may encounter a few problems while using power converters. Here is how to troubleshoot power converter issues.

1. No Output

Sometimes, this could be as simple as the power source not being correctly connected or turned on, and hence, you are not receiving power to the converter.

Check the wiring to ensure all connections and no loose or damaged wires are secured.

Verify the input voltage as well to ensure it is what the converter is meant to handle. If it is outside the specified range, the converter will not work.

If you are professional, examine the internal damage as well. Check to see if there are any visible damages to components.

2. Unstable Output Voltage

If this happens, start by checking the input voltage variations. Fluctuations at the input stage also affect the output.

A voltmeter checks if the output voltage is within the acceptable range despite fluctuating.

How about the load? Check the load connected to the converter to ensure it is not causing excessive voltage fluctuations.

3. Overheating

If you do not clean the power converter, dust and debris can accumulate on it, hindering heat dissipation. The result is having a unit that cannot cool properly. So, keep the power converter free from dust and debris for proper cooling.

If the power converter has a heat sink, ensure it is properly installed and not the cause of the overheating issue.

It also examines the environment in which it operates. Do not expose it to high ambient temperatures.

4. Short-circuit

When this happens, it could be a short circuit in the connections or wiring done on the converter’s input or output side. Have a professional electrician inspect the connections to see where the short circuit is coming from so that it can be rectified.

You may encounter other issues, but those mentioned above are the most common. As long as the connection is made correctly and the power converter is within the right operating environment, it will continue to deliver on its functionality.

Conclusion

Power converters remain essential in delivering the right energy form and level. It all depends on the type you choose. You have options such as AC to AC, DC to AC, AC to DC, and DC to DC. Look at your needs and pick the right circuit to help achieve your desired power needs. Also, buying from top brands is recommended to find the most suitable power converter for the job.
