Many devices like calculators and toys run on small button-like batteries. These batteries are known to last for years without replacement. This is mainly because the devices they power use low power but are also reliable batteries. If you check their packaging, they are often written as AG10 batteries.
AG10 batteries are easy to find applications for thanks to their versatility. People often ask, “Are there any AG10 battery substitutes?”
It is okay to look for AG10 battery equivalents, as you may want to replace the batteries in your device at some point. You are in luck, as there are many AG10 battery replacement options.
The most common AG10 battery equivalents include the LR1130, LR54, 389A, 189, and SR1130.
How do they compare? Are they any good? Are they better? We look into all that below to help you make a better decision if you have to get an AG10 equivalent battery for your device.
What is an AG10 Battery
AG10 battery
The AG10 battery is a very popular type of alkaline button-cell battery. It is likely to be found in low-power devices such as small toys, timepieces, calculators, and watches.
The AG10 batteries remain a top pick for various applications because of their reliability and small size. As such, they can be used for years without being recharged.
AG10 Specifications
| AG10 Battery | Specification |
|---|---|
| Nominal voltage | 1.5V |
| Average weight | 1.2g |
| Typical capacity | 80mAh |
| Resistance | 15KΩ |
| Diameter | 11.6mm |
| Thickness | 3mm |
From the specifications above, you can tell the AG10 battery button cell is compact but still powerful enough to power several devices. Its expected shelf life is 2 to 3 years, and it cannot be recharged once it is fully discharged.
Popular AG10 Battery Equivalents

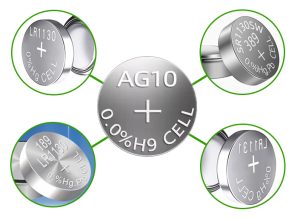

AG10 battery equivalents
Finding the right battery equivalent of AG10 is vital as you might need it if the AG10 batteries are unavailable.
Different manufacturers might name their batteries differently, but in terms of chemical composition, they are the same as AG10 batteries.
Which are these AG10 equivalent batteries?
- 1.LR1130
This is the most popular choice for the AG10 battery equivalent as it uses the same alkaline technology. It has the same capacity and dimensions, making it easy to switch between the two. Still, it works great with watches, calculators, and many other small electronic devices.
- 2.LR1131
This has specifications similar to those of the LR1130, but the capacity often varies from one manufacturer to another.
These batteries will be common in remote controls and toys.
- 3.189
The 189 is available in a 1.5V alkaline or 1.55V silver oxide variant. The capacity largely depends on the battery chemistry. People tend to choose the silver oxide version for its long-lasting and high-performance features.
The performance makes them good for cameras, hearing aids, and watches.
- 4.SR1130/ SR54/ SR1130SW
If you are looking for an AG10 battery substitute with more stable voltage delivery, then you get the silver oxide variant, such as the SR1130. Such a performance difference makes this variant a good pick for high-performance applications.
Expect the SR1130 battery to be used in precision devices such as medical devices, watches, or any other device that needs stable voltage.
- 5.GP89A
This is an LR1130 battery equivalent in chemistry, performance, capacity, and size. So, if you are looking for a nice battery for your clock, alarm, or small toys, this is a great pick.
The list above looks at the common AG10 equivalent batteries, but there are many others. Different manufacturers might have different names, but they often list the above batteries on the packaging to help users easily identify what they are buying.
Which One to Choose For Your Devices
Let us say you want to get a battery AG10 equivalent from Duracell; what are the things you would have to keep in mind? Below is how you can choose the best battery AG10 replacement.
- 1.Device requirements
Each device has a manual that shows which kind of AG10 button battery you should be using. Manufacturers often provide a list so that you have options.
Look at the recommended voltage in addition to the battery name. This is key to ensuring the battery can keep up with the device’s performance, especially in the case of precision devices.
- 2.Battery lifespan
For a long-lasting AG10 button cell equivalent, a silver oxide model such as the SR1130 will be a good choice. Manufacturers will still include the expected battery life of the option you pick. Try to balance having more battery life and not compromising on performance.
- 3.Device compatibility
Getting a battery AG10 replacement based on size should be easy, as almost all equivalents have an 11.6mm thickness and a 3.1mm thickness. However, their composition will vary.
Alkaline equivalents will have lower voltage as the battery ages, while the silver oxide models tend to maintain a stable voltage even with age.
If your device can still function on lower voltage, pick the cheaper alkaline models, such as calculators and toys. However, for precision devices, including medical instruments, the choice of silver oxide variants is recommended.
- 4.Choose reputable brands
Since producing AG10 batteries is cheaper, counterfeit options can sometimes appear on the market, making it harder to get quality device batteries.
If you stick to reputable brands, you will be safe from low-quality batteries. We recommend buying batteries from Duracell, Energizer, Sony, Maxell, Panasonic, and more.
By buying from these brands, you are assured of high-quality batteries that offer longer lifespans and high performance.
Where to Get AG10 Battery Equivalents
Now that you understand the AG10 battery equivalents well, it is easy to start looking for where to buy them.
The most popular choice would be a retail store near you. If it is in the US, visiting Target or any other popular store can solve your needs for an AG10 battery pack.
Shopping online is still a big option. Consider buying an AG10 battery pack from Amazon, eBay, and other specialty stores dealing in batteries and related products.
However, what are the best brands to get? While seeking an AG10 button battery pack equivalent, consider top brands such as Energizer, Duracell, Panasonic, and Maxell.
Other brands may sell the same product; however, we recommend researching them before buying.
Conclusion
AG10 batteries remain a good choice for powering many devices we use daily. For this reason, you should always get the correct AG10 battery equivalent to get your devices working correctly. The main alternatives include the LR1130, SR1130, LR54, 189, 389, and more. Review the battery packaging to see if the one you want to buy is compatible with the AG10 battery devices.
